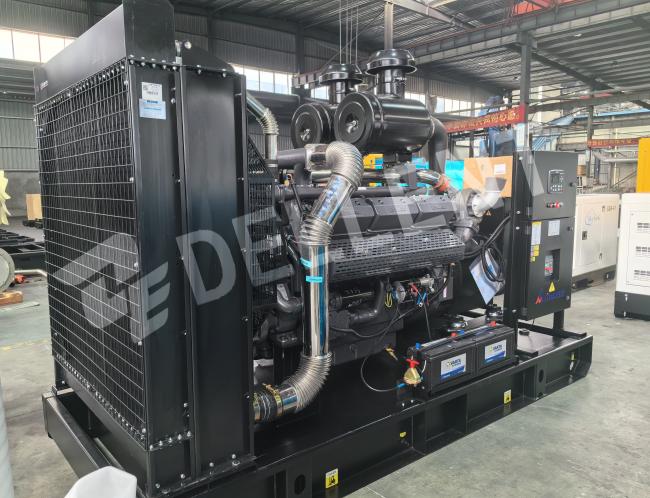

SDEC Diesel Generator 50hz 450kVA Rated Power Generator Set
SDEC Diesel Generator 50hz 450kVA Rated Power Generator Set
Ⅰ. PRODUCT DESCRIPTION
SDEC Diesel Generator 50hz 450kVA Rated Power Generator Set
Specification:
| Model | DE-SC633 | |
| Max. Power | kVA | 500 |
| kW | 400 | |
| Rate Power | kVA | 450 |
| kW | 360 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 811.9 |
Specification of the Diesel Engine:
| Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. | |
| Engine Brand | SDEC | |
| Engine Model | 6KTAA25-G35 | |
| No. of Cylinder | 6 Cylinder L Ttyp | |
| Aspiration | Turbocharged & Aftercooled | |
| Governor | ECU | |
| Engine Max. Output Power | kW | 572 |
| Displacement | L | 25.8 |
| Compression Ratio | 16:01 | |
| Starting Voltage | V | 24 |
| Bore | mm | 170 |
| Stroke | mm | 185 |
| Lubrication Oil Capacity | L | 76 |
| Intake Air Flow | L/S | N.A. |
| Fuel Consumption at 100% Load | L/H | 103.6 |
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
Our company is located in Fu'an, which is known as the City of Motors. Our company was established in 2001. We have a deep manufacturing foundation and good quality guarantee.Compared with other factories, we have this differents: Firstly, for the silent shell of the unit, we use 2mm cold-rolled plates, while other factories mainly use 1.8mm hot-rolled plates. Secondly, we use 2.5mm hot-rolled plate for the chassis fuel tank.Thirdly,the hinges, door locks and some standard parts are all made of 304 stainless steel and will not rust and our factory has a special production line for plastic spraying, so you don’t have to worry about uneven spraying.
