DELLENT Ricardo Diesel Generator 22kVA/18kW 50HZ Soundproof 4YT23-20D
DELLENT Ricardo Diesel Generator 22kVA/18kW 50HZ Soundproof 4YT23-20D
Ⅰ.PRODUCT DESCRIPTION

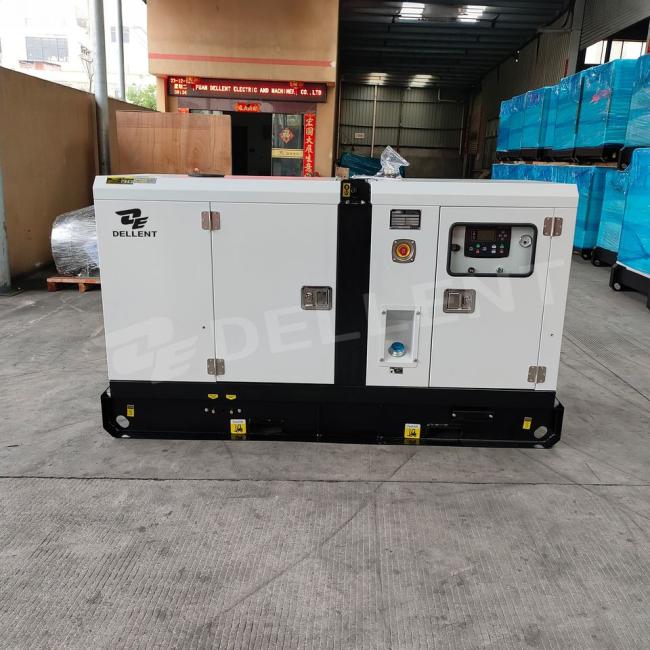

50Hz 400V 18kW/22kVA Soundproof Ricardo Diesel Generator
22kVA Diesel Generator Powered by Ricardo Diesel Engine:
| Model | DE-W22 | |
| Max. Power | kVA | 22 |
| kW | 18 | |
| Rate Power | kVA | 20 |
| kW | 16 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 28.87 |

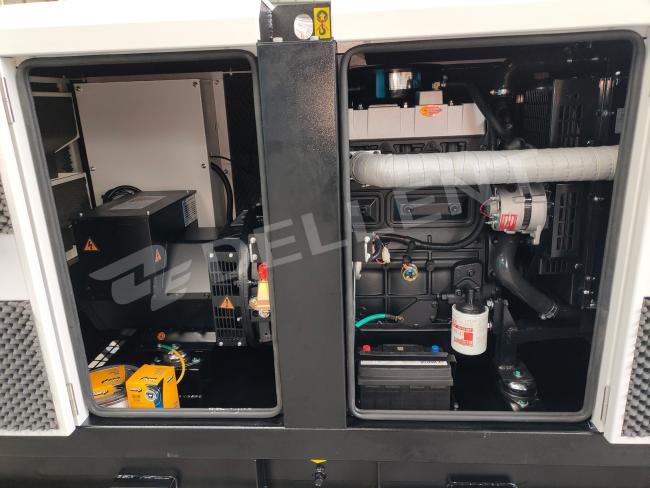

Ricarod Diesel Engine:
| Engine Manufacturer | Kofo | |
| Engine Brand | Ricardo | |
| Engine Model | 4YT23-20D | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Turbocharger and After-cooled | |
| Governor | Mechanical | |
| Engine Max. Output Power | kW | 20 |
| Displacement | L | 2.31 |
| Starting Voltage | V | 24 |
| Bore | mm | 88 |
| Stroke | mm | 95 |
| Compression Ratio | 16 : 1 | |
| Intake Air Flow | M3/Min | N.A. |
Specification of Control Panel:
| Controller Brand | Smartgen | |
| Controller Model | HGM6120N | |
| Breaker Brand | Delixi | |
| Breaker Capacity | A | 250 |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| Mains Monitor | Supply with AMF Function | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
Description
1.Diesel generators are strong-built, ideal for emergency back-up,job sites and industrial appplications.
2.Powered by reliable air/water cooled diesel generators sets, industrial grade, great fuel efficiency, less maintenance, long operating life.
3.Strong technology and high-quality personnel, continuous innovation and perfect management.
4.Each generator will be packed in both strong and economic way tomake sure goods perfectly on delivery.
5.Manufacured strictly according to ISO9001 internatioal quality management system.
6.Set mounted automatic control panel, with Smartgen or Deepsea controller brand for automatic start & stop.
7.Big enough free maintenance battery, world famous brand.
8.Diesel generator parts are international renowned brands, top quality, easy maintaining and replace.
9.The diesel generator has the function of generating electricity and can be used as a backup power supply for various places.
10.Standard control panel is the basic configure for normally operation and usage.
