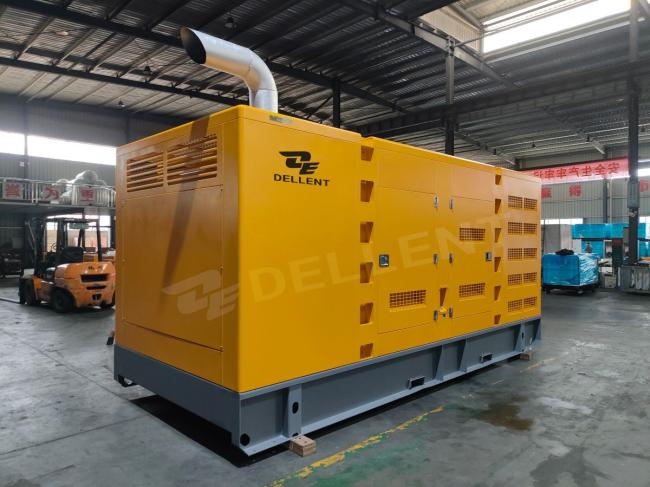

DELLENT 682KW rated power silent of 6KTAA25-G32 diesel generator set
DELLENT 682KW rated power silent of 6KTAA25-G32 diesel generator set
Ⅰ. PRODUCT DESCRIPTION
682kWDiesel Generator Powered by SDEC Diesel Engine:
| Model | DE-SC853 | |
| Max. Power | kVA | 853 |
| kW | 682 | |
| Rate Power | kVA | 775 |
| kW | 620 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 1398.3 |
SDEC Diesel Engine:
| Engine Specification | ||
| Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. | |
| Engine Brand | SDEC | |
| Engine Model | 6KTAA25-G32 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 754 |
| Displacement | L | 25.2 |
| Starting Voltage | V | 24 |
| Bore | mm | 170 |
| Stroke | mm | 185 |
| Lubrication Oil Capacity | L | 75/45 |
| Compression Ratio | 14.5:1 | |
| Intake Air Flow | M3/Min | 35 |
Specification of Control Panel:
| Control Panel Specification | ||
| Controller Brand | Smartgen | |
| Breaker Brand | Delixi | |
| Breaker Capacity | A | 1250 |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| Mains Monitor | Supply with DELLENT Function | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
-. The engine performance is as per GB/T2820.
-. Ratings are based on GB/T1147.1.
---Prime power is available for an unlimited number of hours per year in a variable load application. The permissible average power output over 24 hours of operation shall not exceed 80% of the prime power rating.
---Standby power is available in the event of a utility power outage or under test conditions for up to 200 hours of operation per year. The permissible average power output over 24 hours of operation shall not exceed 80% of the standby power rating.
