High Precision Metal Fiber Optic Rotary Joint For Radar / Electro Optical Pods
Price:
Negotiable
MOQ:
1
Delivery Time:
4 Weeks
Brand:
Panlink
Product Description
High-precision Metal Fiber Optic Rotary Joints for Radar, Electro-Optical Pods and Wind Turbines with Long Lifetime

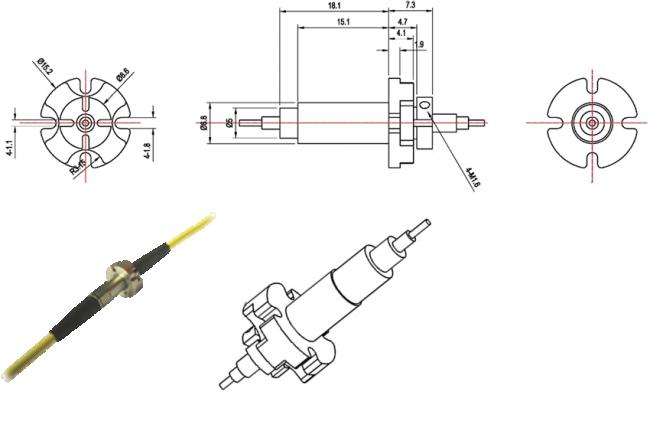

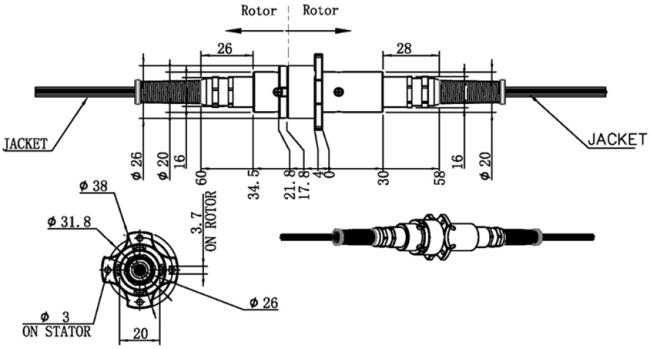

• 1 Channel Fiber Optic Joint
| Model | RJ01-18-3 | ||
| Channel | 1 Channel | Wavelength range | 850 nm/1310-1610nm Optional |
| Insertion Loss | ＜0.5dB (typical: 0.3 dB) | Insertion loss ripple | <0.2 dB (typical: 0.1 dB) |
| Return Loss | >40 dB (typical: 45 dB, 23 C) | Maximum speed | 2,000 rpm |
| Start Up Torque | <20 mN.m | Estimated life cycle | 200 million revolutions |
| Optical Power Handling | 5mw | Housing Material | Stainless stee |
| Pull Strength | 10 N | IP rating | IP 65 |
| Package Style | Pigtail 2000mm both side | Connector | FC/LC/ST/SC OPTIONAL |
| Weight, Approx. | 30 g | Fiber types | Single or Multi mode |
| Operating Temperature | -40 °C ~ +70 °C | StorageTemperature | -55 °C ~ +85 °C |
| Vibration | MIL-STD-810H Method 514.8 Procedure I | Shock | STD-810H, Method 516.8 Procedure I (20g, 11ms,Sawtooth) |
| Relative Humidity, Max. | 95% | Relative Humidity, Max. | 95% |

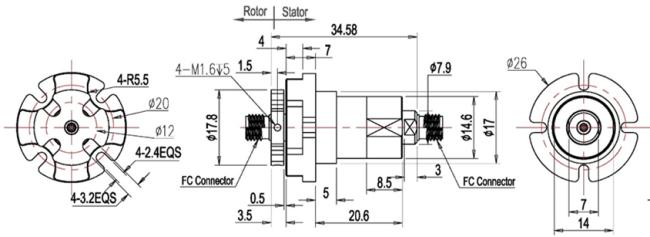

| Model | RJ01-18-3 | ||
| Channel | 1 Channel | Wavelength range | 850 nm/1310-1610nm Optional |
| Insertion Loss | ＜0.5dB (typical: 0.3 dB) | Insertion loss ripple | <0.2 dB (typical: 0.1 dB) |
| Return Loss | >40 dB (typical: 45 dB, 23 C) | Maximum speed | 2,000 rpm |
| Start Up Torque | <20 mNm | Estimated life cycle | 200 million revolutions |
| Optical Power Handling | 5mw | Housing Material | Stainless stee |
| Pull Strength | Nil | IP rating | IP 65 |
| Package Style | FC Connector | Connector | FC |
| Weight, Approx. | 30 g | Fiber types | Single or Multi mode |
| Operating Temperature | -40 °C ~ +70 °C | StorageTemperature | -55 °C ~ +85 °C |
| Vibration | MIL-STD-810H Method 514.8 Procedure I | Shock | STD-810H, Method 516.8 Procedure I (20g, 11ms,Sawtooth) |
| Relative Humidity, Max. | 95% | Relative Humidity, Max. | 95% |

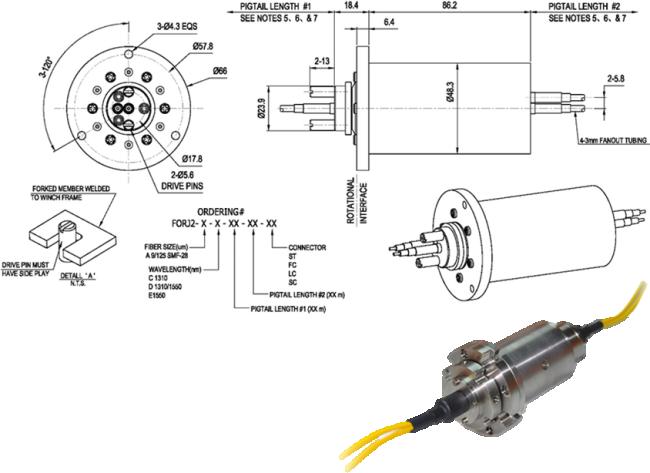

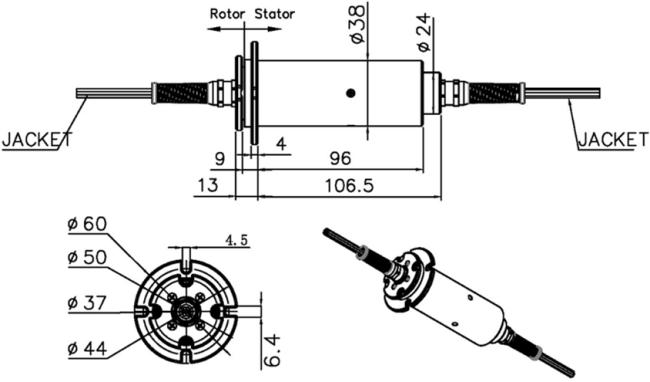

• 2 Channel Fiber Optic Joint

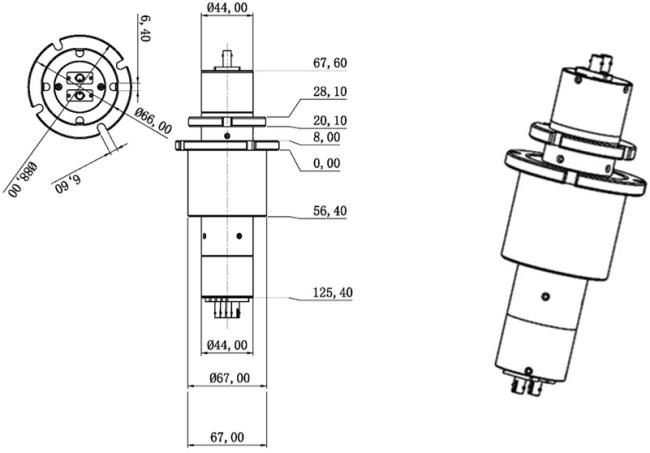

| Model | RJ01-18-3 | ||
| Channel | 2 Channel | Wavelength range | 1310-1610nm |
| Insertion Loss | ＜3.5dB (typical: 3 dB) | Insertion loss ripple | <0.5 dB |
| Return Loss | >35 dB (typical: 40 dB, 23 C) | Maximum speed | 2,000 rpm |
| Start Up Torque | <60 mN.m | Estimated life cycle | 200 million revolutions |
| Optical Power Handling | 5mw | Housing Material | Stainless stee |
| Pull Strength | 10 N | IP rating | IP 65 |
| Package Style | Pigtail 2000mm (optional) | Connector | FC/LC/ST/SC OPTIONAL |
| Weight, Approx. | 150 g | Fiber types | Single mode |
| Operating Temperature | -40 °C ~ +70 °C | Storage Temperature | -55 °C ~ +85 °C |
| Vibration | MIL-STD-810H Method 514.8 Procedure I | Shock | STD-810H, Method 516.8 Procedure I (20g, 11ms,Sawtooth) |
| Relative Humidity, Max. | 95% | Relative Humidity, Max. | 95% |
| Model | RJ01-18-3 | ||
| Channel | 2-6 Channel | Wavelength range | 850 nm/1310-1610nm Optional |
| Insertion Loss | ＜3.5dB (typical: 3 dB) | Insertion loss ripple | <0.5 dB |
| Return Loss | >35 dB (typical: 40 dB, 23 C) | Maximum speed | 2,000 rpm |
| Start Up Torque | <0.5Nm | Estimated life cycle | 200 million revolutions |
| Optical Power Handling | 5mw | Housing Material | Stainless stee |
| Pull Strength | 10 N | IP rating | IP 65 |
| Package Style | Connector | Connector | ST |
| Weight, Approx. | 1.5kg | Fiber types | Single or Multi mode |
| Operating Temperature | -40 °C ~ +70 °C | StorageTemperature | -55 °C ~ +85 °C |
| Vibration | MIL-STD-810H Method 514.8 Procedure I | Shock | STD-810H, Method 516.8 Procedure I (20g, 11ms,Sawtooth) |
| Relative Humidity, Max. | 95% | Relative Humidity, Max. | 95% |
| Model | RJ01-18-3 | ||
| Channel | 2-7 Channel | Wavelength range | 850 nm/1310-1610nm Optional |
| Insertion Loss | ＜3.5dB (typical: 3 dB) | Insertion loss ripple | <0.5 dB |
| Return Loss | >35 dB (typical: 40 dB, 23 C) | Maximum speed | 2,000 rpm |
| Start Up Torque | <0.5Nm | Estimated life cycle | 200 million revolutions |
| Optical Power Handling | 5mw | Housing Material | Stainless stee |
| Pull Strength | 10 N | IP rating | IP 65 |
| Package Style | Pigtail | Connector | FC/LC/ST/SC OPTIONAL |
| Weight, Approx. | 0.5kg | Fiber types | Single or Multi mode |
| Operating Temperature | -40 °C ~ +70 °C | Storage Temperature | -55 °C ~ +85 °C |
| Vibration | MIL-STD-810H Method 514.8 Procedure I | Shock | STD-810H, Method 516.8 Procedure I (20g, 11ms,Sawtooth) |
| Relative Humidity, Max. | 95% | Relative Humidity, Max. | 95% |
| Model | RJ01-18-3 | ||
| Channel | 2-31 Channel | Wavelength range | 850 nm/1310-1610nm Optional |
| Insertion Loss | ＜3.5dB (typical: 3 dB) | Insertion loss ripple | <0.5 dB |
| Return Loss | >35 dB (typical: 40 dB, 23 C) | Maximum speed | 2,000 rpm |
| Start Up Torque | <0.5Nm | Estimated life cycle | 200 million revolutions |
| Optical Power Handling | 5mw | Housing Material | Stainless stee |
| Pull Strength | 10 N | IP rating | IP 65 |
| Package Style | Pigtail | Connector | FC/LC/ST/SC OPTIONAL |
| Weight, Approx. | 1 kg | Fiber types | Single or Multi mode |
| Operating Temperature | -40 °C ~ +70 °C | Storage Temperature | -55 °C ~ +85 °C |
| Vibration | MIL-STD-810H Method 514.8 Procedure I | Shock | STD-810H, Method 516.8 Procedure I (20g, 11ms,Sawtooth) |
| Relative Humidity, Max. | 95% | Relative Humidity, Max. | 95% |

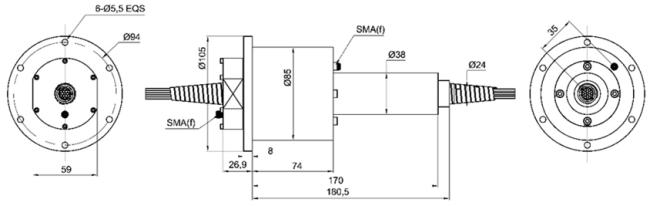

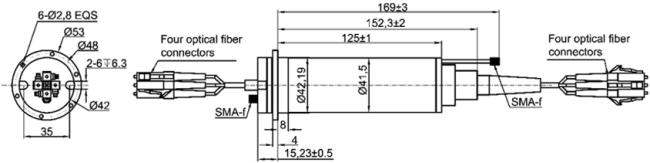

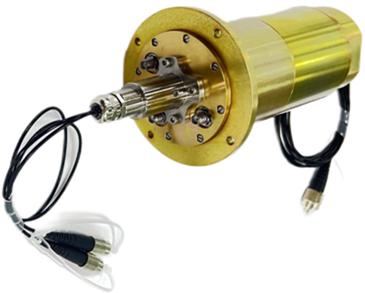

• 1 Channel RF + Multi Channel Fiber Optic Joint
| Model | HH02-501 | ||
| Channel | Channel 1 | Channel 2-5(FORJ) | |
| Interface Type | SMA(f) | Fiber types | Single mode |
| Frequency Range | DC - 18 GHz | Wavelength range | 1310-1550nm |
| Peak Power, Max. | 500W | Insertion loss | <3.5dB |
| Average Power, Max. | 5 W | Insertion loss ripple | <1.5dB |
| VSWR, Max. | 2.0 @ DC-4G, 2.5 @ 4-8G, 3.5 @ 8-12G, 4 @ 12-18G | Return loss | >40dB |
| VSWR - WOW, Max. |
0.1@ DC-4GHz 0.4@4-8GHz 0.8@8-12GHz 1@12-18GHz |
Light power(Max) | 23dBm |
| Insertion Loss, Max. |
0.6dB@ DC-4GHz 1dB@4-8GHz 2dB@8-12GHz 3.5dB@12-18GHz |
Connector types | FC/ST/LC/SC |
| Insertion Loss WOW, Max. |
0.1dB@ DC-4GHz 0.35dB@4-8GHz 0.7dB@8-12GHz 1dB@12-18GHz |
Channel | 4 |
| Rotating Speed, Max. | 60rpm | ||
| Life Time, Min. | 5 million revolutions | ||
| Starting Torque, Max | 0.2 Nm @ room temperature | ||
| Housing Material | aluminum alloy | ||
| Housing Surface Finish | chromate conversion coat | ||
| Weight, Approx. | 350 g | ||
| Operating Temperature | -40 °C ~ +70 °C | ||
| Storage Temperature | -55 °C ~ +85 °C | ||
| Relative Humidity,Max. | 95% | ||
| Protection Level | IP54 | ||
| Model | HH02-501 | ||
| Channel | Channel 1 | Channel 2-5(FORJ) | |
| Interface Type | SMA(f) | Fiber types | Single mode |
| Frequency Range | DC - 18 GHz | Wavelength range | 1310-1550nm |
| Peak Power, Max. | 500W | Insertion loss | <3.5dB |
| Average Power, Max. | 5 W | Insertion loss ripple | <1.5dB |
| VSWR, Max. | 2.0 @ DC-4G, 2.5 @ 4-8G, 3.5 @ 8-12G, 4 @ 12-18G | Return loss | >40dB |
| VSWR - WOW, Max. | 0.1@ DC-4GHz,0.4 @ 4-8GHz , 0.8 @ 8-12GHz, 1 @ 12-18GHz | Light power(Max) | 23dBm |
| Insertion Loss, Max. |
0.6dB@ DC-4GHz 1dB@4-8GHz 2dB@8-12GHz 3.5dB@12-18GHz |
Connector types | FC/ST/LC/SC |
| Insertion Loss WOW, Max. |
0.1dB@ DC-4GHz 0.35dB@4-8GHz 0.7dB@8-12GHz 1dB@12-18GHz |
Channel | 4 |
| Rotating Speed, Max. | 60rpm | ||
| Life Time, Min. | 5 million revolutions | ||
| Starting Torque, Max | 0.2 Nm @ room temperature | ||
| Housing Material | aluminum alloy | ||
| Housing Surface Finish | chromate conversion coat | ||
| Weight, Approx. | 350 g | ||
| Operating Temperature | -40 °C ~ +70 °C | ||
| Storage Temperature | -55 °C ~ +85 °C | ||
| Relative Humidity,Max. | 95% | ||
| Protection Level | IP54 | ||
