IP54 Protected Flexibly Customizable Gas Fluid Integrated Slip Ring with 50 Million Revolutions Lifetime
Flexibly Customizable And Stable Gas / Fluid Integrated Slip Rings For Industrial Robots And Marine Industry
Gas / Fluid Integrated Slip Rings
In modern industrial systems such as industrial robots and laser processing equipment, they not only need electrical transmission, but also need gas and fluid transmission to satisfy the whole system’s complex operation. Panlink as a global leading rotating interface solutions provider, develop this series gas / fluid integrated slip rings to meet clients’ media and electrical infinite rotating need.
These hybrid units combine an electrical slip ring with a required number of gas / fluid passes. They feature both superior high power, signal and communication protocol handling capabilities of Panlink electrical slip rings and media rotary joints’ good sealing capability, to offer flexibility of electrical and media transfer through a single rotary joint, effectively facilitate the mounting and reduce the cost for the system.
| Features | Advantages |
|
■ The number and size of gas / fluid ports optional |
■ Long life and maintenance free operation |
| ■ Suitable for a variety of media | ■ Reliable seal technology |
| ■ Modular electrical slip ring design | ■ A variety of existing designs available |
|
■ Flexible combination of electrical and media channels |
■ Superior power, signal and media handling capabilities |
| Typical Applications | |
| ■ Industrial robots | ■ Rotary indexing table |
| ■ Laser processing equipment | ■ Semiconductor |
| ■ Lithium battery machinery |
| Fluid / Gas Integrated Slip Ring | |||||||||||
| Model | Channels | Current(amps) | Voltage (VAC) | Size | Bore | Speed | |||||
| Eletrical | Air | 2 | 5 | 10 | 120 | 240 | 380 | Dia x L(mm) | mm | RPM | |
| PSR-T25F-8P32S2E-10mm | 50 | 1 @ 10mm | 42 | 8 | × | 78 x 175 | 300 | ||||
| PSR-TS25-2P36S1E&2Rc2 | 47 | 2 @ 10mm | 45 | 2 | × | 78 x 178 | 300 | ||||
| PSR-C24-2Rc2-10mm | 24 | 2 @ 10mm | 24 | × | 80 x 150 | 300 | |||||
| PSR-TS25-4P12S1E&3Rc2 | 25 |
2 @ 12mm 1 @ 10mm |
21 | 4 | × | 78 x 187 | 300 | ||||
| Remark: gas channel can be changed to fluid channel. | |||||||||||
| Specification | |
| Volatge | 240VAC / 380VAC |
| Current | 2A / 5A / 10A / 15A / 30A |
| Insulation Resistance | 500MΩ@500VDC |
| Electrical Noise | 40mΩ max |
| Dielectric Strength | 500VAC@50Hz |
| Operating Speed | 300rpm |
| Torque | <2~10N*M |
| Life time | 50 million revolutions |
| Contact Material | Preciouse Metal |
| Lead Wire | Teflon Wires |
| Housing Material | Aluminium Alloy |
| Number of Channel | 1,2,3 |
| Channel Diameter | 6,8,10,12mm |
| Pressure Rating | Depend on Requirments |
| Working Temperature | -40℃~+80℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 95±3%(30℃+5℃) |
| Protection Level | IP54 |

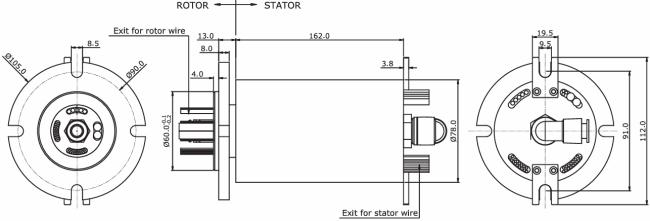

PSR-T25F-8P32S2E-10mm

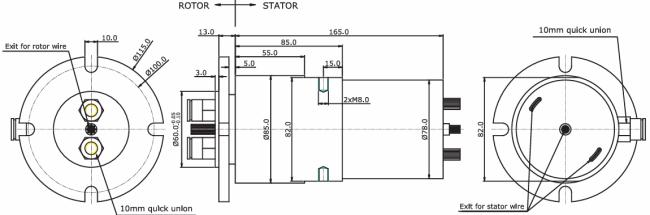

PSR-TS25-2P36S1E&2Rc2

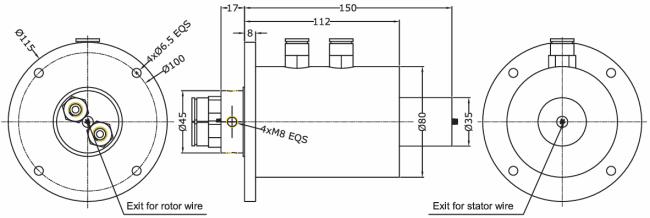

PSR-C24-2Rc2-10mm

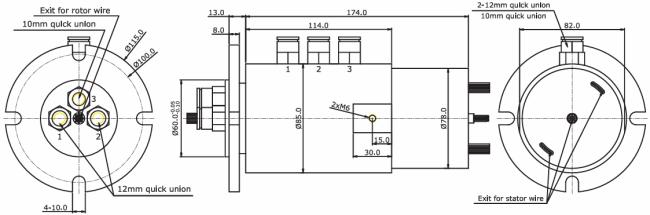

PSR-TS25-4P12S1E&3Rc2
