380VAC 8 Circuits CT Slip Ring with Gold-Gold Contact Material for Medical Equipment
CT Scanner Slip Ring
Panlink—Leader of CT Slip Ring
In early spring 2012, after two years of relentless R&D and refinement by the Panlink team, the Panlink CT slip ring successfully passed a series of rigorous tests and was delivered to the customer. This made Panlink the first domestic company and the third worldwide with independent R&D capabilities for both industrial and medical CT slip rings. This success laid the foundation for domestic CT slip ring R&D, filled a gap in the industry, and holds the potential to break the current monopoly held by foreign manufacturers on this critical component.
| Model | Circuits |
Voltage (VAC) |
Size (mm) |
Speed (rpm) |
Page | |
| OD | ID | |||||
| PSR-P1300-4P4S | 8 | 380 | 1989.6 | 1325 | 20 | P |
| Remark: Customization is available for current, voltage, speed, power and data combinations. | ||||||
| Model | PSR-P1300-4P4S |
| Voltage Rating | 380VAC |
| Current Rating |
Power Module: 4 channels × 500A/ring Signal Module: 4 channels × 2A/ring |
| Insulation Resistance | 500MΩ @ 500VDC |
| Electrical Noise | 10mΩ @ 6VDC, 50mA, 5rpm |
| Weight | 0.2Kg |
| Voltage Rating | 380VAC |
| Current Rating | 2A |
| Torque | 0.1N*M |
| Protection Level | IP54 |
| Contact Material | Gold-Gold |
| Speed | 20rpm |
| Lead Wire | special-purpose wire |
| Lifetime | 500 million revolutions |
| Working Temperature | -40℃~+80℃ |
| Mechanical Vibration | MIL-SID-810E |
| Relative Humidity | 80% |

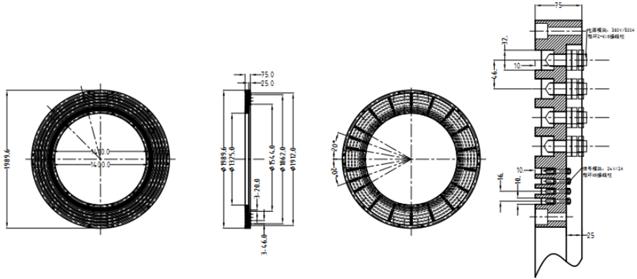

PSR-P1300-4P4S Dimensions
