Plug And Play Ethernet Slip Ring 250rpm Video Connection HD SDI Slip Ring
Price:
Negotiable
MOQ:
1
Delivery Time:
4 Weeks
Brand:
Panlink
Product Description
1000BaseT Ethernet and HD Video Capability Plus 5 amp Power and 2 amp Signal Circuits
Plug-and-play Ethernet and HD-SDI video connection
| Features | Typical Applications |
| • 1000BaseT Ethernet | • Video over Ethernet |
| • Compatible with HD-SDI | • Motor control |
| • Speeds up to 250 RPM | • POE (Power-Over-Ethernet) |
| • Circuits: Power: 6 X 5A; Signal: 8 X 2A | • High definition video security |
| • Housing Material: Aluminium Alloy | • Pan / tilt systems |
| • Caontact Material: Aluminium Alloy | • Rotating high definition video displays |

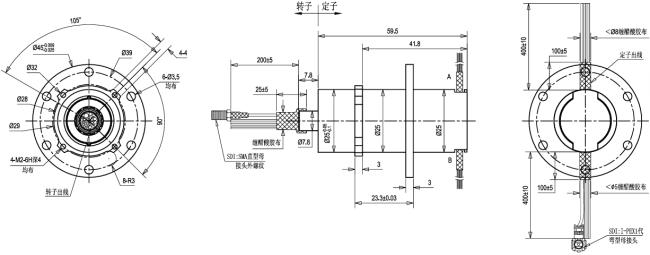

| Specification | |
| Model | PSR-C36-6P8S1G-SDI |
| Capsule Length | 59.5mm |
| Total Rings | 23 |
| Circuit | 8 x Signal(2A); 6 x Power(5A); 1 x 1000BaseT Ethernet |
| Voltage | 240VAC |
| Insulation Resistance | 500MΩ@500VDC |
| Electrical Noise | 20mΩ max |
| Dielectric Strength | 500VAC@50Hz |
| Operating Speed | 250rpm |
| Torque | ≤44gf.cm |
| Contact Material | Precious Metal |
| Housing Material | Aluminium Alloy |
| Working Temperature | -40℃~+80℃ |
| Storage Temperature | -40℃~+80℃ |
| Humidity | 90±5%(30℃+5℃) |
| Protection Level | IP51 |
| Lifetime | 10 million revolutions |
