HD Hybrid Slip Ring with 1000M Ethernet and 3G-SDI for Video Surveillance Systems at 300 RPM
Price:
Negotiable
MOQ:
1
Delivery Time:
4 Weeks
Brand:
Panlink
Product Description
1 Channel 1000M Ethernet + 1 Channel 3G-SDI Hybrid Slip Ring Suitable for Modern Industrial Communication and Video Surveillance Systems
Ethernet and High Definition(HD) Hybrid Slip Ring
| Features | Applications |
|
• Compliant with 1 Group 1000BaseT Ethernet |
• Motor control |
|
• Compatible with 3G-SDI |
• POE (Power-Over-Ethernet) |
|
• Speeds up to 300 RPM |
• High definition video security |
|
• Multiple circuit configurations available |
• Pan / tilt systems |
| • modern industrial communication |
 |
The Ethernet cable is supplied terminated with a RJ45 connector. |

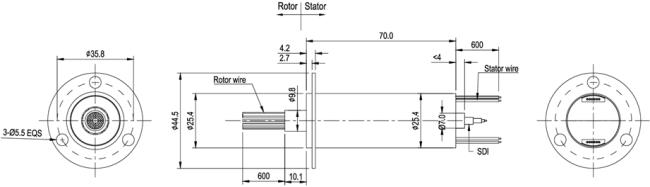

| Model | 1000BaseT Ethernet | HD-SDI | OD x L inch(mm) | Circuits | Voltage |
| PSR-C60-2P4S-SDI-1G | 1 | 1 |
1″ x 2.76″ (25.4 x 70) |
35 (2x)10A, (24x)2A, (1x)SDI, (1x)Ethernet |
240VAC |
| Specifications | |
| Insulation Resistance | 200MΩ@500VDC |
| Electrical Noise | Max. 40mΩ |
| Dielectric Strength | 500VAC@50Hz |
| Torque | Max. 0.2N.M |
| Speed | 300rpm |
| Lifetime | 10 million revolutions |
| Working Temperature | -67℉ to +160℉(-55℃ to +71℃) |
| Storage Temperature | -67℉ to +176℉(-55℃ to +80℃) |
| Relative Humidity | 95%±3(30℃+5℃) |
| Protection Level | IP51 |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Lead Wire | Teflon Wire |
