300rpm Compact Slip Ring 0.61″ 15.5mm OD for Industrial Robotics
Price:
Negotiable
MOQ:
1
Delivery Time:
4 Weeks
Brand:
Panlink
Product Description
Compact Precision Miniature Capsule Slip Ring with 0.61″(15.5mm) Outer Diameter
| Features | Applications |
• Rings: 12 (1A/Ring) | • Industrial Robotics |

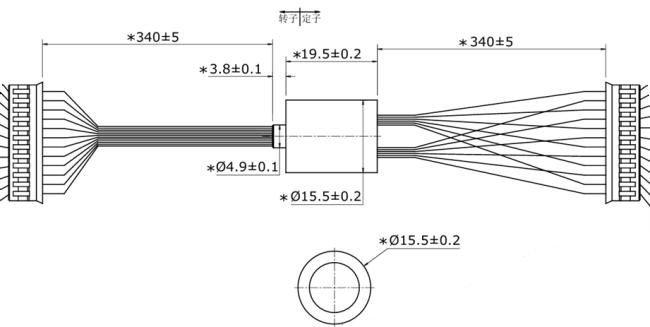

• D x L: 0.61″ x 0.77″(15.5mm x 19.5mm) | • Precision Rotary Tables |
• High Insulation Resistance | • Security & Surveillance |
• Gold-on-gold sliding contact technology | • Medical Equipment |
| Model | Circuits | Voltage | Length inch(mm) | OD inch(mm) | Speed (rpm) | |
| PSR-M12-12 | 12 x 1A | 48VDC | 0.77″(19.5) | 0.61″(15.5) | 300 | |
| Specifications | ||||||
| Insulation Resistance | 20MΩ@200VDC | |||||
| Dielectric Strength | 200VAC@50Hz | |||||
| Contact Resistance | 20mΩ, max | |||||
| Rotating Speed | 300rpm | |||||
| Torque | Max 21gf.cm | |||||
| Lifetime | 5 million revolutions | |||||
| Working Temperature | -40℉ to +176℉(-40℃ to +80℃) | |||||
| Storage Temperature | -40℉ to +176℉(-40℃ to +80℃) | |||||
| Relative Humidity | 90% | |||||
| Protection Level | IP54 | |||||
| Contact Material | Gold-Gold | |||||
| Housing Material | Aluminum Alloy | |||||
| Lead wire | AWG28# Teflon Wire | |||||
