Medical Equipment 100BaseT Ethernet Slip Ring With 19 Pin HDMI / Ethernet Integration
Price:
Negotiable
MOQ:
1
Delivery Time:
4 Weeks
Brand:
Panlink
Product Description
Stable Slip Ring with 19-pin HDMI and Ethernet Integration, Designed for Equipment that Requires Rotating Transmission of High-Definition Video
1 Group HDMI+ 1 Group 100M Ethernet
| Features | Applications |
|
• Video Connections:19-pin HDMI 1080P@60Hz |
• Security Surveillance |
|
• Ethernet Connections: 100BaseT Ethernet |
• Display and Broadcasting Equipment |
|

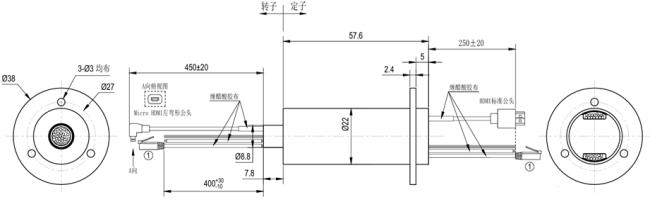

• D x L: 0.87″ x 2.27″(22mm x 57.6mm) |
• Medical Equipment |
|
• Housing Material: Aluminum Alloy |
• Radar and Sensing Equipment |
 |
The cable is supplied terminated with a HDMI connector. |
| Model |
100BaseT Ethernet |
HDMI |
OD x L inch(mm) |
Circuits | Voltage |
| PSR-C36-2P21E-HDMI | 1 | 1 | 0.87″ x 2.27″(22 x 57.6) | 33 | 240VDC |
| Specifications | |
| Insulation Resistance | 50MΩ@100VDC |
| Electrical Noise | Max. 10mΩ |
| Dielectric Strength | 100VAC@50Hz |
| Speed | 100rpm |
| Lifetime | 10 million revolutions |
| Working Temperature | -40℉ to +176℉(-40℃ to +80℃) |
| Protection Level | IP51 |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Lead Wire | Teflon Wire |
