Compact Slip Ring for Combined Signal and Power Transmission with 48VDC and 300rpm

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 4 Weeks
Brand: Panlink
Product Description

Compact Slip Ring for Combined Signal and Power Transmission

PSR-C6-2P

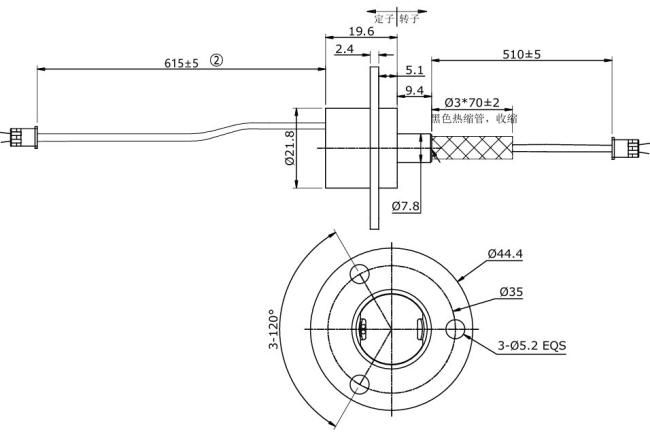

Dimensions in millimeters

Specifications

Circuits 2 for Power Transmission
Electrical Specifications
Voltage Rating 48VDC
Current Rating 4A
Insulation Resistance Max 20MΩ @ 200VDC
Dielectric Noise 200VAC @ 50Hz, 60s
Electric Noise Max 20mΩ
Lead Cable AWG20 Teflon Silver Plated
Mechanical Specifications
Working Life 5 million revolutions
Rotating Speed 300rpm
Operating Temperature -4℉ to +176℉ (-20℃ to +80℃)
Operating Humidity 0~90%RH
Contact Material Precious Metal
Housing Material ABS-777D
Protection Degree IP51(higher or lower on request)
Shock GB/T 2423.5 (IEC 60068-2-27)
Vibration GB/T 2423.10 (IEC 60068-2-6)
