High-Speed 300rpm Slip Ring with 1 Gigabit Ethernet Channel and HD-SDI2.0 Transmission for Industrial Applications
Price:
Negotiable
MOQ:
1
Delivery Time:
4 Weeks
Brand:
Panlink
Product Description
The Slip Ring for Lossless HD-SDI Signals & Industrial-Grade Endurance
PSR-C44-5P20S-G

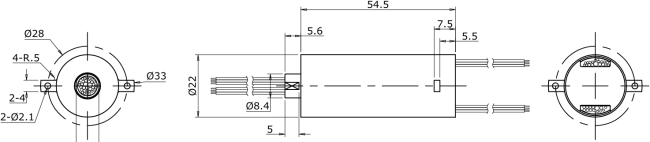

Dimensions in millimeters
Specification
| Circuits | 1 Channel for HD-SDI2.0 Transmission, 1 Channel for Gigabit Ethernet, 3 for RS422 Transmission, 9 for Power Transmission |
| Electrical Specifications | |
| Frequency Rate | 1.5GHz HD-SDI |
| Voltage Rating | 28VDC |
| Current Rating | Power1: 0.5A, Power2: 3A, Power3: 5A, Signal: 2A |
| Insulation Resistance | Max 200MΩ @ 500VDC |
| Dielectric Noise | 500VAC @ 50Hz, 60s |
| Electric Noise | Max 40mΩ |
| Lead Cable | Teflon Wires |
| Mechanical Specifications | |
| Working Life | 10 million revolutions |
| Rotating Speed | 300rpm |
| Operating Temperature | -40℉ to +176℉ (-40℃ to +80℃) |
| Storage Temperature | -40℉ to +176℉ (-40℃ to +80℃) |
| Operating Humidity | 0~95%RH |
| Torque | 0.2N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP51(higher or lower on request) |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
