IP65 Stainless Steel 1-channel Fiber Optic Rotary Joint (FORJ) with SM/MM 9/125μm Fiber

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 4 Weeks
Brand: Panlink
Product Description
IP65 Stainless Steel FORJ with 1-channel Singleode/Multimode

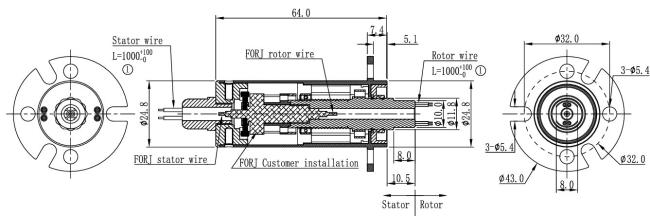

PSR-F7-4-FORJ

Dimensions in millimeters

Specification

Circuits

4 for Power Transmission, 1 for FORJ

Fiber Optic Specifications

Fiber Type

SM/MM 9/125μm Fiber

Wavelength nm

650-1650

Connector Types

FC/SC/ST/SMA/LC

Insertion Loss Max.(dB)

2

Insertion Loss Ripple(dB)

0.25

Return Loss(dB)

40

Electrical Specifications

Current Rating

5A

Voltage Rating

380VAC

Insulation Resistance

Max 1000MΩ @ 500VDC

Electrical Noise

Max 40mΩ

Dielectric Noise

600VDC @ 50Hz, 60s

Lead Cable

Teflon Wire

Mechanical Specifications

Rotating Speed

300rpm

Contact Material

Precious Metal

Housing Material

Stainless Steel

Protection Degree

IP65(higher or lower on request)
