1-Channel DC-3GHz Coaxial Rotary Joint with 22 Power Transfer Channels and Low Insertion Loss
Price:
Negotiable
MOQ:
1
Delivery Time:
4 Weeks
Brand:
Panlink
Product Description
1-channel DC-3GHz Coaxial Rotary Joint with 22 Power Transfer
PSR-T12-4P(20A)2P(10A)16S-1RF

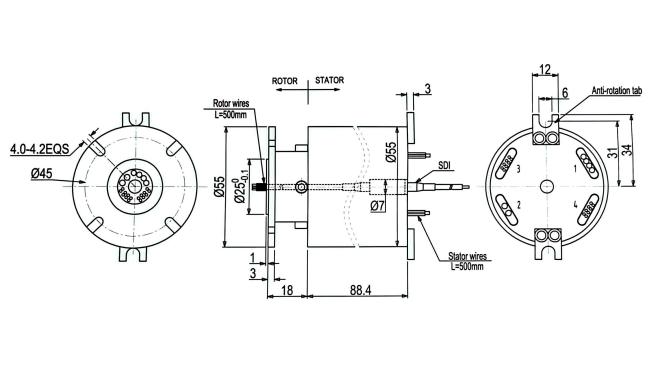

Dimensions in millimeters
Specifications:
| Circuits | 22 for Power Transmission, 1 for RF Transmission |
| RF Rotary Joint Specifications | |
| RF Channels | 1 |
| Frequency Range | DC-3GHz |
| Insertion Loss Max.(dB) | 0.65 |
| VSWR | 1.3 |
| Impedance | 75ohm |
| Electrical Specifications | |
| Voltage Rating | 250VDC |
| Current Rating | 2A, 10A, 20A |
| Insulation Resistance | Max 500MΩ @ 500VDC |
| Dielectric Noise | 500VAC @ 50Hz, 60s |
| Electric Noise | Max 10mΩ |
| Mechanical Specifications | |
| Working Life | 50 million revolutions |
| Rotating Speed | 250rpm |
| Operating Temperature | -40℉ to +176℉ (-40℃ to +80℃) |
| Storage Temperature | -49℉ to +185℉ (-45℃ to +85℃) |
| Operating Humidity | 0~85%RH |
| Torque | 0.2N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP51(higher or lower on request) |
