8 Channel Through Bore Slip Ring with 20A Current Rating and 1.18inch ID for Power Transmission

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 4 Weeks
Brand: Panlink
Product Description

8 Channel Through Bore Slip Ring ID 1.18inch 20A

PSR-T30-8

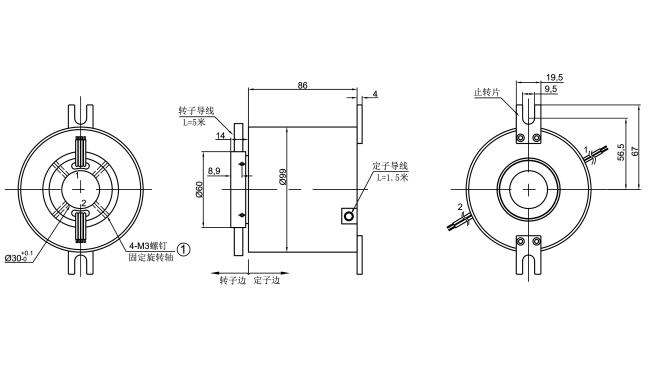

Dimensions in millimeters

Specifications:

Channels 8 for Power Transmission
Electrical Specifications
Voltage Rating 440VAC/VDC
Current Rating 20A
Insulation Resistance Max 500MΩ @ 600VDC
Dielectric Noise 1000VAC @ 50Hz, 60s
Electric Noise Max 10mΩ
Lead Cable Teflon Wire
Mechanical Specifications
Rotating Speed 250rpm
Operating Temperature -22℉ to +176℉ (-30℃ to +80℃)
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP51(higher or lower on request)
