2 EtherCAT Channels Slip Ring with 0.51inch Bore and 300rpm Rotation Speed
Price:
Negotiable
MOQ:
1
Delivery Time:
4 Weeks
Brand:
Panlink
Product Description
2 Group EtherCAT Slip Ring with 0.51inch Bore
PSR-F15-2P3S2E

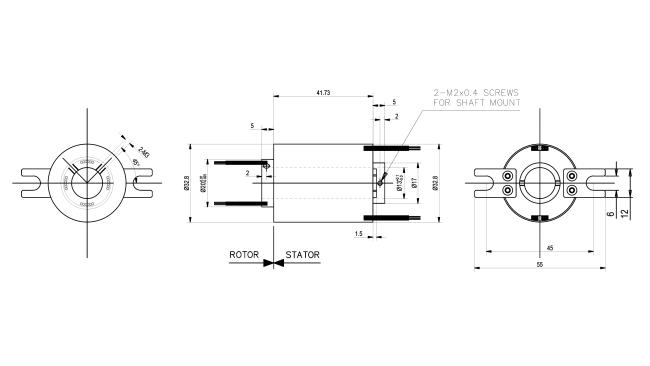

Drawing (Dimensions in Millimeters)
Specification:
| Channels | 2 for Signal Transmission, 2 for Power Transmission, 2 Groug EtherCAT |
| Electrical Specifications | |
| Voltage Rating | 48VDC |
| Current Rating | Power: 5A, Signal: 2A |
| Insulation Resistance | Max 200MΩ @ 500VDC |
| Dielectric Noise | 300VAC @ 50Hz, 60s |
| Electric Noise | Max 10mΩ |
| Lead Cable | Power: AWG22 Teflon, Signal: AWG26 Teflon, CAT6 |
| Mechanical Specifications | |
| Working Life | 12 million revolutions |
| Rotating Speed | 300rpm |
| Operating Temperature | -4℉ to +158℉ (-20℃ to +70℃) |
| Storage Temperature | -13℉ to +176℉ (-25℃ to +80℃) |
| Operating Humidity | 0~95%RH |
| Torque | 0.5N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP54(higher or lower on request) |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
