10-channel High Temperature Power Slip Ring for Downhole Applications with 180°C and 100MPa Resistance

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 4 Weeks
Brand: Panlink
Product Description

10-channel Power Slip Ring for downhole: 180°C, 100MPa, oil-immersed

PSR-T12S-10

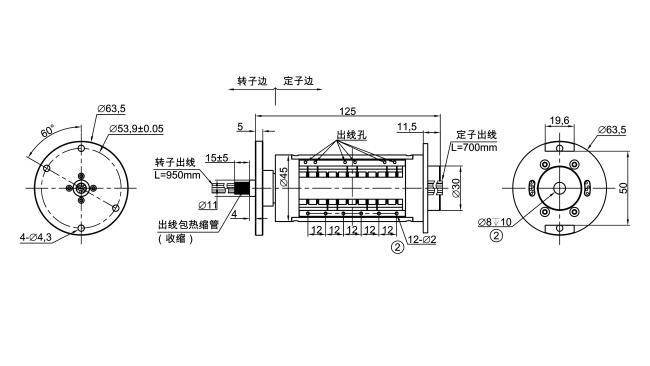

Drawing (Dimension in Millimeters)

Specification

Channels 10 for Power Transmission
Electrical Specifications
Voltage Rating 300VAC/VDC
Current Rating 3A
Insulation Resistance Max 1000MΩ @ 1000VDC
Dielectric Noise 800VAC @ 50Hz, 60s
Electric Noise Max 10mΩ
Lead Cable Teflon Wire
Mechanical Specifications
Rotating Speed 100rpm
Operating Temperature -40℉ to +356℉ (-40℃ to +180℃)
Storage Temperature -40℉ to +356℉ (-40℃ to +180℃)
Operating Humidity 0~95%RH
Torque 1.0N•m
Oil Immersion Test Immersion in 100# Silicone Oil at 175 °C
Pressure 100MPa
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP00(higher or lower on request)
Shock GB/T 2423.5 (IEC 60068-2-27)
Vibration GB/T 2423.10 (IEC 60068-2-6)
