3 Triple Axle Cargo Trailer Side Wall Cargo Semi Trailer Truck 40-60 Tons 13000mm

Price Negotiable
Price: $8500
MOQ: 1unit
Delivery Time: 15working days
Brand: Purple Horn
Product Description

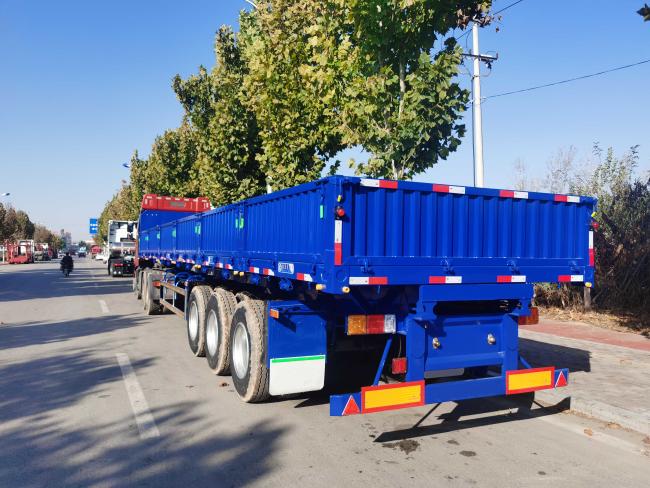

      3 Axle 40-60 tons 13000mm side wall cargo semi trailer for sale

This is a cargo transportation tool made of high-strength steel. It has a length of 13 meters and a body width of 2.5 meters to provide a large capacity of cargo transportation space. It adopts box structure for easy loading and unloading operation, equipped with unloading door. The suspension system can be selected from air suspension or steel plate suspension to ensure smooth traveling. Equipped with efficient braking system and safety equipment, providing safe and reliable driving experience. This semi-trailer is ideal for commercial transportation, suitable for transporting all kinds of goods, is your efficient, stable and safe transportation partner.

Type Semi-Trailer
Max Payload 50T
Place of Origin Shandong, China
Use Truck Trailer
Material Steel
Size 13000*2500*600
type lowbed trailer
Product name 3-axle Semi-trailer
Landing Gear Standard 28Ton
Axle Brand 13TON Axle FUWA Brand
King pin 2"(50mm)or3.5"(90mm) JOST
Brake System Dual Line Braking System
Main Beam Hight:500mm
Suspension Mechanical Suspension
Tire 12R22.5
Loading capacity 25T~80T
Total Weight 38000 kg
Rated Load 30000 kg
Tare Weight 8000 kg
Wheel Base 7180+1310+1310 (mm)
Tyre Specifications 11.00-20 12PR(Vacuum tyre or rail tyre)
Number of the Tyres 12
Axle Brand FUWA (BPW optional)
Number of the Axles 3
Axle-load 23500 kg
Pieces of leaf-spring 10
Suspension Independent stamping steel rigid suspension ( air suspension)
Departure Angle 14.5
Front/Rear Overhang 2100 mm
Outside Dimensions (LxWxH) 13000X2500X2990 (mm)
Interior Dimensions (LxWxH) 12820X2350X600 (mm)
Material of the Main Beam Q235B manganese plates, automatic submerged arc welded
Brake System ABS (optional )
Brake Air Chamber Four double and two single chamber
Usage Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo.

PACKING AND SHIPPING

We find the best shipping solution according to the actual order size to reduce the transportation cost and save the transportation cost for customers Common shipping: bulk carrier, ro-ro ship,container ship, frame ship
(1) Waxing: carry out wax spraying treatment
(2) Packing: stabilized and fixed with steel wire to protect the trailer during transportation.
(3) Transportation: Reliable logistics services from well-known freight forwarding providers to make the transportation process safe and timely.
(4) In 80% of the cases, we can provide customers with 15-20 days delivery for regular trailers.
(5) We can ship all trucks and trailers and spare parts by all means of transportation.
(6) For 90% of our cargoes, we will ship by sea, by container or roll-on/roll-off/bulk/flatbed to all major continents, such as South America, the Middle East, Africa, Oceania, etc. We can also ship by road or by road to the neighboring countries of China, such as Russia, Tajikistan, Kazakhstan and Mongolia.
(7 )For China's neighboring countries, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc., we can ship by road or railroad transportation trucks.
(8) For light spare parts for urgent needs, we can ship them by international courier services, such as DHL, TNT, UPS or Fedex.
