PTFE / NBR Pneumatic Cylinder Piston Seal Manufacturer High Wear Resistance
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15 work days
Brand:
Kelong
Product Description
KL48 double acting piston seal consists of one PTFE profile ring, one elastomer X-ring and an O-ring as energizer. KL48 is an ideal piston seal for systems which has two different media in the system seperated by the piston seal such as fluid and gas.
Advantages
• Able to work at variable media types, liquid-liquid or liquid-gas systems
• Designed for grooves according to ISO 7425/1
• High resistance to variety of chemicals and high temperature with use of different elastomers
• High pressure resistance
• Design providing good sealing performance at variable pressures
• High wear resistance
• Long service life
Area of Application
• Piston accumulators
• Hydro-pneumatic cylinders
• Presses
• Loading platforms

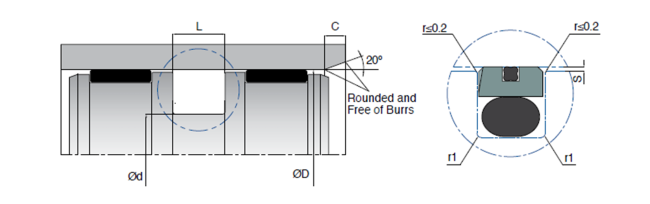

| D (H9) | d (h9) | L (+0.2/-0) | r1 | C | O-Ring | X-Ring | MATERIAL | |
| KL48-016 | 16 | 5 | 4.2 | 1 | 6 | 4.34x3.53 | 12.42x1.78 | PTFE |
| KL48-022 | 22 | 11 | 4.2 | 1 | 6 | 10.69x3.53 | 17.17x1.78 | PTFE |
| KL48-025 | 25 | 14 | 4.2 | 1 | 6 | 13.87x3.53 | 20.35x1.78 | PTFE |
| KL48-028 | 28 | 17 | 4.2 | 1 | 6 | 15.47x3.53 | 23.52x1.78 | PTFE |
| KL48-030 | 30 | 19 | 4.2 | 1 | 6 | 18.64x3.53 | 25.12x1.78 | PTFE |
| KL48-032 | 32 | 21 | 4.2 | 1 | 6 | 20.22x3.53 | 26.70x1.78 | PTFE |
| KL48-035 | 35 | 24 | 4.2 | 1 | 6 | 23.40x3.53 | 29.87x1.78 | PTFE |
| KL48-040 | 40 | 29 | 4.2 | 1.3 | 6 | 28.17x3.53 | 34.65x1.78 | PTFE |
| KL48-042 | 42 | 31 | 4.2 | 1.3 | 6 | 29.75x3.53 | 37.82x1.78 | PTFE |
| KL48-045 | 45 | 34 | 4.2 | 1.3 | 6 | 32.92x3.53 | 37.82x1.78 | PTFE |
| KL48-050 | 50 | 39 | 4.2 | 1.3 | 6 | 37.69x3.53 | 44.17x1.78 | PTFE |
| KL48-050/1 | 50 | 34.5 | 6.3 | 1.3 | 8 | 32.69x5.33 | 44.17x1.78 | PTFE |
| KL48-052 | 52 | 41 | 4.2 | 1.3 | 6 | 40.87x3.53 | 47.35x1.78 | PTFE |
| KL48-055 | 55 | 44 | 4.2 | 1.3 | 6 | 44.04x3.53 | 50.52x1.78 | PTFE |
| KL48-060 | 60 | 49 | 4.2 | 1.3 | 6 | 47.22x3.53 | 53.70x1.78 | PTFE |
| KL48-063 | 63 | 52 | 4.2 | 1.3 | 6 | 50.39x3.53 | 56.87x1.78 | PTFE |
| KL48-063/1 | 63 | 47.5 | 6.3 | 1.3 | 8 | 47.00x5.33 | 56.87x1.78 | PTFE |
| KL48-065 | 65 | 54 | 4.2 | 1.3 | 6 | 53.57x3.53 | 60.05x1.78 | PTFE |
| KL48-070 | 70 | 59 | 4.2 | 1.3 | 6 | 56.74x3.53 | 63.22x1.78 | PTFE |
| KL48-070/1 | 70 | 54.5 | 6.3 | 1.3 | 8 | 53.34x5.33 | 63.22x1.78 | PTFE |
| KL48-075 | 75 | 64 | 4.2 | 1.3 | 6 | 63.09x3.53 | 69.57x1.78 | PTFE |
| KL48-080 | 80 | 64.5 | 6.3 | 1.8 | 8 | 62.87x5.33 | 72.75x1.78 | PTFE |
| KL48-080/1 | 80 | 59 | 8.1 | 1.8 | 10.5 | 58.00x6.99 | 71.12x2.62 | PTFE |
| KL48-085 | 85 | 69.5 | 6.3 | 1.8 | 8 | 69.22x5.33 | 75.92x1.78 | PTFE |
| KL48-090 | 90 | 74.5 | 6.3 | 1.8 | 8 | 72.40x5.33 | 82.27x1.78 | PTFE |
| KL48-095 | 95 | 79.5 | 6.3 | 1.8 | 8 | 78.74x5.33 | 88.62x1.78 | PTFE |
| KL48-100 | 100 | 84.5 | 6.3 | 1.8 | 8 | 81.92x5.33 | 88.62x1.78 | PTFE |
| KL48-100/1 | 100 | 79 | 8.1 | 1.8 | 10.5 | 77.00x6.99 | 88.57x2.62 | PTFE |
| KL48-105 | 105 | 89.5 | 6.3 | 1.8 | 8 | 88.27x5.33 | 94.97x1.78 | PTFE |
| KL48-110 | 110 | 94.5 | 6.3 | 1.8 | 8 | 91.44x5.33 | 101.32x1.78 | PTFE |
| KL48-115 | 115 | 99.5 | 6.3 | 1.8 | 8 | 97.80x5.33 | 107.67x1.78 | PTFE |
| KL48-120 | 120 | 104.5 | 6.3 | 1.8 | 8 | 100.97x5.33 | 114.02x1.78 | PTFE |
| KL48-125 | 125 | 109.5 | 6.3 | 1.8 | 8 | 107.32x5.33 | 114.02x1.78 | PTFE |
| KL48-130 | 130 | 114.5 | 6.3 | 1.8 | 8 | 113.67x5.33 | 120.37x1.78 | PTFE |
| KL48-130/1 | 130 | 109 | 8.1 | 1.8 | 10.5 | 104.14x6.99 | 120.32x2.62 | PTFE |
| KL48-135 | 135 | 114 | 8.1 | 1.8 | 10.5 | 113.67x6.99 | 126.67x2.62 | PTFE |
| KL48-140 | 140 | 119 | 8.1 | 1.8 | 10.5 | 116.84x6.99 | 126.67x2.62 | PTFE |
| KL48-150 | 150 | 129 | 8.1 | 1.8 | 10.5 | 126.37x6.99 | 139.37x2.62 | PTFE |
| KL48-160 | 160 | 139 | 8.1 | 1.8 | 10.5 | 135.90x6.99 | 145.72x2.62 | PTFE |
| KL48-170 | 170 | 149 | 8.1 | 1.8 | 10.5 | 148.60x6.99 | 158.42x2.62 | PTFE |
| KL48-180 | 180 | 159 | 8.1 | 1.8 | 10.5 | 158.12x6.99 | 171.11x2.62 | PTFE |
| KL48-190 | 190 | 169 | 8.1 | 1.8 | 10.5 | 168.30x6.99 | 177.47x2.62 | PTFE |
| KL48-200 | 200 | 179 | 8.1 | 1.8 | 10.5 | 177.17x6.99 | 190.17x2.62 | PTFE |
| KL48-210 | 210 | 189 | 8.1 | 1.8 | 10.5 | 187.30x6.99 | 202.87x2.62 | PTFE |
| KL48-220 | 220 | 199 | 8.1 | 1.8 | 10.5 | 196.22x6.99 | 202.87x2.62 | PTFE |
| KL48-240 | 240 | 219 | 8.1 | 1.8 | 10.5 | 215.27x6.99 | 234.62x2.62 | PTFE |
| KL48-250 | 250 | 229 | 8.1 | 1.8 | 10.5 | 227.97x6.99 | 234.62x2.62 | PTFE |
| KL48-250/1 | 250 | 225.5 | 8.1 | 1.8 | 12 | 221.62x6.99 | 234.62x2.62 | PTFE |
| KL48-300 | 300 | 272 | 9.5 | 2.5 | 13 | 269.50x8.4 | 278.99x3.53 | PTFE |
| KL48-310 | 310 | 282 | 9.5 | 2.5 | 13 | 279.00x8.4 | 291.70x3.53 | PTFE |
| KL48-350 | 350 | 322 | 9.5 | 2.5 | 13 | 319.50x8.4 | 329.80x3.53 | PTFE |
