KL102 Custom Hydraulic Rod Wiper Seal PTFE / NBR Dust Wiper Seal
Price:
Negotiable
MOQ:
100
Delivery Time:
15
Brand:
KELONG
Product Description
KL102 Wipers Are Elements Preventing The Foreign Particles From Outer Environment Penetrate In The Hydraulic Application
KL102 wipers are elements preventing that foreign particles from outer environment penetrate in the hydraulic applications, and consist of PTFE scraper ring and elastomer o-ring. They have long service life withh low friction in fast moving systems.
Advantages
• Low friction
• Stick-slip free at static states
• Design that can scrape the oil film on the rod
• Wide range of dimensions
• Operating at high speed systems
• Simple groove design
Area of Application
• Standard industrial cylinders
• Iron and steel industry
• Injection moulding machines
• Presses

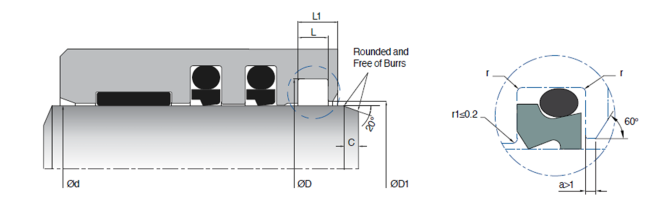

| d (f8) | D (H9) | D1 (H11) | L (+0.2/-0) | L1 | r | O-Ring | MATERIAL | |
| KL102-020 | 20 | 27.6 | 21.5 | 4.2 | 7.2 | 0.8 | 23.47X2.62 | PTFE |
| KL102-022 | 22 | 29.6 | 23.5 | 4.2 | 7.2 | 0.8 | 25.07X2.62 | PTFE |
| KL102-025 | 25 | 32.6 | 26.5 | 4.2 | 7.2 | 0.8 | 28.25X2.62 | PTFE |
| KL102-028 | 28 | 35.6 | 29.5 | 4.2 | 7.2 | 0.8 | 31.42X2.62 | PTFE |
| KL102-030 | 30 | 37.6 | 31.5 | 4.2 | 7.2 | 0.8 | 33.00X2.62 | PTFE |
| KL102-032 | 32 | 39.6 | 33.5 | 4.2 | 7.2 | 0.8 | 34.59X2.62 | PTFE |
| KL102-036/1 | 36 | 43.6 | 37.5 | 4.2 | 7.2 | 0.8 | 39.34X2.62 | PTFE |
| KL102-040 | 40 | 48.8 | 41.5 | 6.3 | 9.3 | 0.8 | 44.12X2.62 | PTFE |
| KL102-042 | 42 | 49.6 | 43.5 | 4.2 | 7.2 | 0.8 | 45.69X2.62 | PTFE |
| KL102-045 | 45 | 53.8 | 46.5 | 6.3 | 9.3 | 0.8 | 48.90X2.62 | PTFE |
| KL102-050 | 50 | 58.8 | 51.5 | 6.3 | 9.3 | 0.8 | 55.25X2.62 | PTFE |
| KL102-055 | 55 | 63.8 | 56.5 | 6.3 | 9.3 | 0.8 | 60.00X2.62 | PTFE |
| KL102-056 | 56 | 64.8 | 57.5 | 6.3 | 9.3 | 0.8 | 60.00X2.62 | PTFE |
| KL102-060 | 60 | 68.8 | 61.5 | 6.3 | 9.3 | 0.8 | 64.77X2.62 | PTFE |
| KL102-063 | 63 | 71.8 | 64.5 | 6.3 | 9.3 | 0.8 | 67.95X2.62 | PTFE |
| KL102-065 | 65 | 73.8 | 66.5 | 6.3 | 9.3 | 0.8 | 69.52X2.62 | PTFE |
| KL102-070 | 70 | 82.2 | 72 | 8.1 | 12.1 | 1 | 75.80X3.53 | PTFE |
| KL102-075 | 75 | 87.2 | 77 | 8.1 | 12.1 | 1 | 82.14X3.53 | PTFE |
| KL102-080 | 80 | 92.2 | 82 | 8.1 | 12.1 | 1 | 85.32X3.53 | PTFE |
| KL102-085 | 85 | 97.2 | 87 | 8.1 | 12.1 | 1 | 91.67X3.53 | PTFE |
| KL102-090 | 90 | 102.2 | 92 | 8.1 | 12.1 | 1 | 94.84X3.53 | PTFE |
| KL102-090/1 | 90 | 98.8 | 92 | 6.3 | 9.3 | 0.8 | 94.92x2.62 | PTFE |
| KL102-100 | 100 | 112.2 | 102 | 8.1 | 12.1 | 1 | 107.54X3.53 | PTFE |
| KL102-105 | 105 | 117.2 | 107 | 8.1 | 12.1 | 1 | 110.72X3.53 | PTFE |
| KL102-110 | 110 | 122.2 | 112 | 8.1 | 12.1 | 1 | 117.07X3.53 | PTFE |
| KL102-110/1 | 110 | 118.8 | 112 | 6.3 | 9.3 | 0.8 | 113.98X2.62 | PTFE |
| KL102-115 | 115 | 127.2 | 117 | 8.1 | 12.1 | 1 | 120.25X3.53 | PTFE |
| KL102-120 | 120 | 132.2 | 122 | 8.1 | 12.1 | 1 | 126.60X3.53 | PTFE |
| KL102-125 | 125 | 137.2 | 127 | 8.1 | 12.1 | 1 | 132.94X3.53 | PTFE |
| KL102-130 | 130 | 142.2 | 132 | 8.1 | 12.1 | 1 | 136.12X3.53 | PTFE |
| KL102-135 | 135 | 147.2 | 137 | 8.1 | 12.1 | 1 | 142.47X3.53 | PTFE |
| KL102-140 | 140 | 156 | 142.5 | 9.5 | 14.5 | 1.5 | 146.05X3.53 | PTFE |
| KL102-150 | 150 | 166 | 152.5 | 9.5 | 14.5 | 1.5 | 151.77X5.33 | PTFE |
| KL102-153 | 153 | 169 | 155.5 | 9.5 | 14.5 | 1.5 | 161.30X5.33 | PTFE |
| KL102-160 | 160 | 176 | 162.5 | 9.5 | 14.5 | 1.5 | 170.82X5.33 | PTFE |
| KL102-165 | 165 | 181 | 167.5 | 9.5 | 14.5 | 1.5 | 170.82X5.33 | PTFE |
| KL102-170 | 170 | 186 | 172.5 | 9.5 | 14.5 | 1.5 | 177.17X5.33 | PTFE |
| KL102-175 | 175 | 191 | 177.5 | 9.5 | 14.5 | 1.5 | 183.52X5.33 | PTFE |
| KL102-180 | 180 | 196 | 182.5 | 9.5 | 14.5 | 1.5 | 189.87X5.33 | PTFE |
| KL102-190 | 190 | 206 | 192.5 | 9.5 | 14.5 | 1.5 | 196.22X5.33 | PTFE |
| KL102-200 | 200 | 216 | 202.5 | 9.5 | 14.5 | 1.5 | 208.92X5.33 | PTFE |
| KL102-212 | 212 | 228 | 214.5 | 9.5 | 14.5 | 1.5 | 221.62x5.33 | PTFE |
| KL102-220 | 220 | 236 | 222.5 | 9.5 | 14.5 | 1.5 | 227.97X5.33 | PTFE |
| KL102-240 | 240 | 256 | 242.5 | 9.5 | 14.5 | 1.5 | 247.02X5.33 | PTFE |
| KL102-250 | 250 | 266 | 252.5 | 9.5 | 14.5 | 1.5 | 253.57X5.33 | PTFE |
| KL102-260 | 260 | 276 | 262.5 | 9.5 | 14.5 | 1.5 | 266.07X5.33 | PTFE |
| KL102-270 | 270 | 286 | 272.5 | 9.5 | 14.5 | 1.5 | 278.77X5.33 | PTFE |
| KL102-280 | 280 | 296 | 282.5 | 9.5 | 14.5 | 1.5 | 291.47X5.33 | PTFE |
| KL102-300 | 300 | 316 | 302.5 | 9.5 | 14.5 | 1.5 | 304.17X5.33 | PTFE |
| KL102-320 | 320 | 336 | 322.5 | 9.5 | 14.5 | 1.5 | 329.57X5.33 | PTFE |
| KL102-330 | 330 | 346 | 332.5 | 9.5 | 14.5 | 1.5 | 335.00X5.33 | PTFE |
| KL102-350 | 350 | 366 | 352.5 | 9.5 | 14.5 | 1.5 | 354.97x5.33 | PTFE |
| KL102-360 | 360 | 376 | 362.5 | 9.5 | 14.5 | 1.5 | 367.50X5.33 | PTFE |
| KL102-380 | 380 | 396 | 382.5 | 9.5 | 14.5 | 1.5 | 380.37X5.33 | PTFE |
| KL102-400 | 400 | 416 | 402.5 | 9.5 | 14.5 | 1.5 | 405.26X5.33 | PTFE |
| KL102-405 | 405 | 429 | 407.5 | 14 | 22 | 1.5 | 417.96x6.99 | PTFE |
| KL102-430 | 430 | 454 | 432.5 | 14 | 22 | 1.5 | 443.36x6.99 | PTFE |
| KL102-440 | 440 | 464 | 442.5 | 14 | 22 | 1.5 | 456.06X6.99 | PTFE |
| KL102-460 | 460 | 484 | 462.5 | 14 | 22 | 1.5 | 468.76x6.99 | PTFE |
| KL102-480 | 480 | 504 | 482.5 | 14 | 22 | 1.5 | 494.16X6.99 | PTFE |
| KL102-490 | 490 | 514 | 492.5 | 14 | 22 | 1.5 | 506.86x6.99 | PTFE |
| KL102-500 | 500 | 524 | 502.5 | 14 | 22 | 1.5 | 515.00X6.99 | PTFE |
| KL102-510 | 510 | 534 | 412.5 | 14 | 22 | 1.5 | 515.00X6.99 | PTFE |
| KL102-520 | 520 | 544 | 522.5 | 14 | 22 | 1.5 | 532.26x6.99 | PTFE |
| KL102-530 | 530 | 554 | 532.5 | 14 | 22 | 1.5 | 542X7 | PTFE |
| KL102-540 | 540 | 564 | 542.5 | 14 | 22 | 1.5 | 557.66x6.99 | PTFE |
| KL102-570 | 570 | 594 | 572.5 | 14 | 22 | 1.5 | 582.86x6.99 | PTFE |
