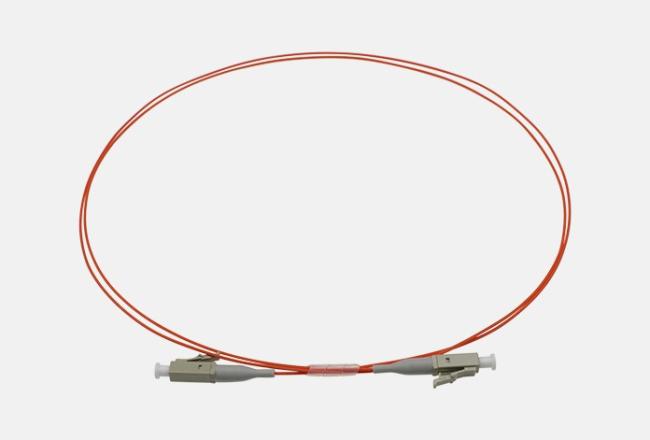

Fiber Optic Patch Cord 0.9mm LC To LC Fiber Multimode G657A2 Cable
LC to LC Fiber Cable are the basic passive components of Optical Fiber Telecommunication System,are utilized to achieve accurate mounting for precision alignment of fiber optical components.
LC to LC Fiber Cable is available in five regular colors, custom colors are available, please contact sales if you need custom colors.
Yingfeng provides a full set of fiber optic patch cord customization services, with the following options to choose from
1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, SMA
2. Core endface: PC, UPC, APC
3. Fiber core type: single mode (SM: 9/125um), multimode (MM: 50/125um or 62.5/125um)
4. Number of cables: simplex, duplex
5. Cable diameter: 3.0mm, 2.0mm, 0.9mm
6. Cable length: 1, 2, 3 meters or customized
7. Cable type: PVC, low smoke and halogen-free
Features
1. High-quality patch cords: 100% tested to meet product standards and meet customer needs
2. High quality inserts: ceramic inserts are used, professional grinding technology, so that the fiber end face can be precisely connected.
3. Stable parameter performance: the jumper meets the working environment of -40~85°C, more than 1000 times average plugging and unplugging durability test, stable performance and reliable quality.
4. Various styles, can be customized
| Type | SM | MM | ||
| Polishing | PC | UPC | APC | PC |
| Insertion Loss | ≤0.25dB | ≤0.25dB | ≤0.25dB | ≤0.25dB |
| Return Loss | ≥50dB | ≥55dB | ≥60dB | / |
| Durability | 1000 times | |||
| Operating Temperature | -40-85°C | |||
| Cable Diameter | 0.9mm, 2.0mm, 3.0mm | |||
| Cable sheath | PVC or LSZH | |||
Shipping Method
|
|
|
1.Our LC To LC Fiber Cable is packed in sealed bags and then put into cartons to effectively protect the product from damage.
2. We can pack according to customers' requirements
3. You can choose your own freight forwarder, we will provide you with good cooperation.
Company Show
All of our products are professionally tested to fully guarantee the quality and reliability of our products. It makes them very popular not only in domestic market, but also in overseas market. Our products are widely used in telecom, broadband, broadcasting, CATV and network industries.
Ying Feng's production scale allows us to deliver products to our customers in a short period of time. For small orders (less than 10,000 pieces), our normal delivery time will be within 7 days of the order being placed.
Frequently Asked Questions:
1. Are you a factory or a trading company?
We are a factory, welcome to visit!
2. Can I buy samples from you?
Yes! You are welcome to place a sample order to test our excellent quality and service.
3. What is your warranty?
All Yingfeng products are covered by a 12-month warranty.
4. Can you put my brand name (logo) on these products?
Yes! We offer OEM service. Our factory accepts bulk orders for free logo production.
