Industrial Hard Capsule Machine automatic Gelatin Capsule Making Machine
Price:
38000$
MOQ:
1
Delivery Time:
Negotiable
Brand:
Canaan Kaixinlong
Product Description
Overview of the machine:
Capsule Factory Medical Capsule Filling Machine Pharmaceutical Factory
CFK-2500 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.
Technical parameters:
| Output | 2500Capsules/min |
| No.of segment bores | 18 |
| Suitable fof capsule | 00#-5# |
| Total power | 8Kw(Standard configuration) |
| Overall weight | 1650Kgs |
| Overall diemensions | 1230mm×1175(+382)mm×1955mm |
| Noise | ≤75DB(A) |
| Pressure | 0.4 ~ 0.7Mpa |
| Air consumption | ≤9m³ |
| Vacuum | -0.03 ~ -0.06Mpa |
| Filling error | ±2.5%~±5% |
The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

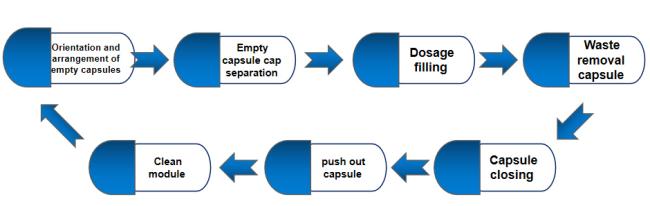

The process of capsule filling:

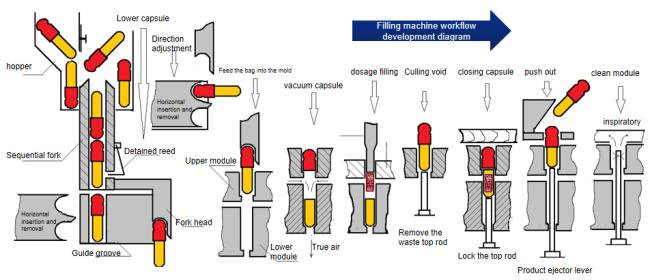

Expansion diagram of the working principle:
Sort of empty capsule:
|
principle
The seeding tube is equipped with multiple circular holes and communicate with the capsule hopper, and the channel is equipped with capsule tablets.
The seeding sac tube slides up and down to drop the empty capsule into the pore channel. When the seeding capsule tube goes up, the capsule piece will jam the capsule. When the seeding tube falls down, the capsule holder rotates and drives the capsule to release the capsule, and the capsule falls out of the hole.
|
 |

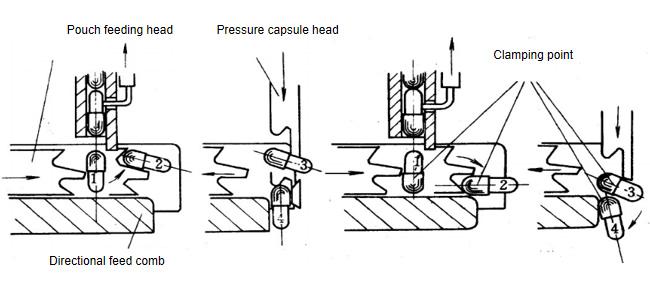

Orientation of the empty capsule:
Broadcast description
The capsule head always acts in the middle of the capsule body, and the capsule head pushes the capsule to make a U-turn movement, which always pushes the capsule body to the edge of the capsule comb, and then presses the capsule head down to turn the capsule over and push it vertically into the module hole.
principle
1. The thrust point of the capsule head is on the capsule body;
2. The width of the chute is smaller than the outer diameter of the capsule cap, which is larger than the outer diameter of the capsule body. It only has a tightness effect on the capsule cap and does not contact with the capsule body.
Orientation of the empty capsule
