Pharma Industrial Capsule Filling Machine 11.5Kw automatic capsule filler
Price:
49500$
MOQ:
1
Delivery Time:
Negotiable
Brand:
Canaan Kaixinlong
Product Description
Overview of the machine:
Industrial Capsule Filling Machine Manufacturer Pharmaceutical Machine Pharmaceutical Technology Pellet Filling Machine
CFK-3500 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.
Display diagram for the reference:
Technical parameters:
| Output | 3500Capsules/min |
| No.of segment bores | 25 |
| Suitable fof capsule | 00#-5# |
| Total power | 11.5Kw(Standard configuration) |
| Overall weight | 2200Kgs |
| Overall diemensions | 1435(+550)mm×1248(+280)mm×1960mm |
| Noise | ≤80DB(A) |
| Pressure | 0.4 ~ 0.7Mpa |
| Air consumption | ≤12m³ |
| Vacuum | -0.03 ~ -0.06Mpa |
| Filling error | ±2.5%~±5% |
The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

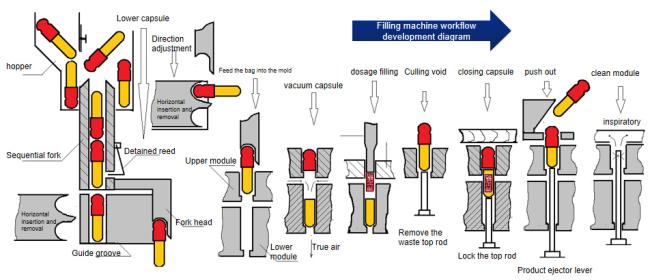

The process of capsule filling:
Expansion diagram of the working principle:
