Quantitative Small Automatic Capsule Filling Machine Polishing In Pharmaceutical
Price:
25000$
MOQ:
1
Delivery Time:
Negotiable
Brand:
Canaan Kaixinlong
Product Description
Overview of the machine:
Pharmaceutical Technology Pellet Filling Machine High Quality Capsule Filling Machine Hard Capsule Filling Machine
The CFK-1250 series capsule filling machine designed and produced by our factory has been improved and innovated for many times in the original models, which is the preferred equipment for hospitals or small and medium-sized pharmaceutical factories, replacing the original semi-automatic capsule filling equipment.
The whole machine adopts intermittent rotary mechanism and quantitative dose filling. Suitable for 00 # -5 # capsule powder and pellets filling, and can be selected with automatic bag delivery machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.
Technical parameters:
| Output | 1250Capsules/min |
| No.of segment bores | 9 |
| Suitable fof capsule | 00#-5# |
| Total power | 5.6Kw(Standard configuration) |
| Overall weight | 1200Kgs |
| Overall diemensions | 1085+(435)mm*1015(+252)mm*1880mm |
| Noise | ≤75DB(A) |
| Pressure | 0.4 ~ 0.7Mpa |
| Air consumption | ≤6m³ |
| Vacuum | -0.03 ~ -0.06Mpa |
| Filling error | ±2.5%~±5% |
The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

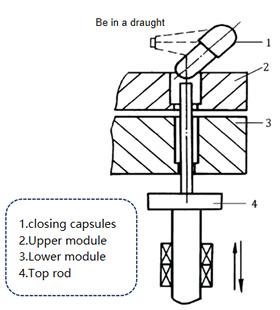

Finished capsule discharge station:
|
Use
The finished capsules will be pushed out for collection.
Principle
The main component of the device is a discharge top rod that can reciprocate up and down. When the upper and lower modules carrying the closed capsule are rotated above the exit station and stopped, the capsule is pushed out of the module hole. The capsule was then blown into the outgoing hopper and slid into the stock barrel.
|
 |
Cleaning station:
|
Use
The cleaning unit cleans the module for access to the next cycle.
Principle
When the upper and lower modules are dragged under the main working plate and parked at the cleaning station, they are placed at the gap of the cleaning device. At this time, the compressed air is opened, and the powder in the mold hole and the broken skin are blown out of the mold hole from the lower direction of the lower module. The vacuum suction system placed above the mold hole draws it into the vacuum cleaner to keep the mold hole clean and to facilitate the next cycle operation.
|
 |
