Medical Empty Pill Capsule Filler High-Tech Pharmaceutical Machine
Price:
19500$
MOQ:
1
Delivery Time:
Negotiable
Brand:
Canaan Kaixinlong
Product Description
Overview of the machine:
High-Tech Pharmaceutical Machine Medical Capsule Filling Machine Capsule Factory
The NJP-800 series capsule filling machine designed and produced by our factory has been improved and innovated for many times, and is the preferred equipment for hospitals and small and medium-sized pharmaceutical factories, replacing the original semi-automatic capsule filling equipment.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and capsule filling, and can be equipped with automatic bag delivery machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.
Display diagram for the reference:
Technical parameters:
| Output | 800Capsules/min |
| No.of segment bores36 | 6 |
| Suitable fof capsule | 00#-5# |
| Total power | 4.5Kw(Standard configuration) |
| Overall weight90 | 1000Kgs |
| Overall diemensions |
840(+339)mm×820(+339)mm×2000m
|
| Noise | ≤75DB(A) |
| Pressure | 0.4 ~ 0.7Mpa |
| Air consumption | ≤6m³ |
| Vacuum | -0.03 ~ -0.06Mpa |
| Filling error | ±2.5%~±5% |
The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

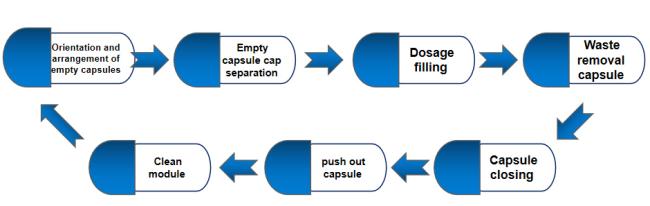

The process of capsule filling:
