15Kw High Speed Pharmaceutical Capsule Machine quantitative filling
Price:
67000$
MOQ:
1
Delivery Time:
Negotiable
Brand:
Canaan Kaixinlong
Product Description
Overview of the machine:
Automatic Capsule Filler Capsule Filling Machine Manufacturer Powder Capsule Filling Machine High Speed Capsule Filling
NJP-5000 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.
Technical parameters:
| Output | 5000Capsules/min |
| No.of segment bores | 36(Three rows) |
| Suitable fof capsule | 00#-5# |
| Total power | 15Kw(Standard configuration) |
| Overall weight | 3200Kgs |
| Overall diemensions | 1605(+530)mmX1285(+285)mmX2091mm |
| Noise | ≤80DB(A) |
| Pressure | 0.4 ~ 0.7Mpa |
| Air consumption | ≤15m³ |
| Vacuum | -0.03 ~ -0.06Mpa |
| Filling error | ±3%~±7% |
The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

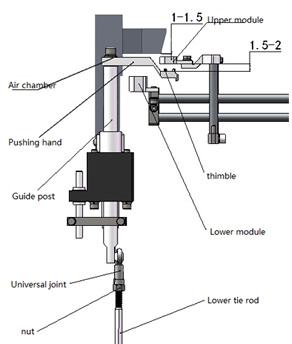

Rejection station:
|
Use
Some empty capsules may keep the body cap still for some reason, and remain in the upper module hole; to prevent mixing into the finished product, they are removed before the capsule is closed.
Principle
A push hand that can reciprocate up and down, located between the upper module and the lower module, with a thimble hand. When the upper and lower modules rotate, the push hand stops at the lower limit position and the thimble breaks away from the upper module. When the module stops at this station, the push hand goes up and the thimble mounted on the push hand is inserted into the upper module hole.
①. If there is a pulled out capsule cap in the upper mold hole, the upward top has no impact on the capsule cap.
②. If there is an open empty capsule in the upper mold hole, the upper module is pushed out by the upward thimble and sucked into the air chamber.
|
 |
Locking station:
|
Use
Lock the capsule of the push rod to meet the requirements of the finished product.
Principle
The upper and lower modules are rotated to the lock, when the axis of the upper and lower modules overlap. The upper baffle above the module begins to move against the top bar below. The upper baffle presses the capsule cap, the top rod rises, and the capsule cap body is closed and locked
|
 |
Material feeding method:
 |
 |
 |
| Manual feeding | Lifter feeder(option) |
Vacuum feeder (option)
|
|
1.Add the material to the hopper manually.
2.Large dust, high labor intensity.
3.No cost, to adapt to the smaller batch production
|
1.Through the transition feeding pipe, with a soft connection.
2.The feeding process is closed, no dust overflow, safety and health.
3.Adapt to the mixture of materials, can control to solve the problem of material stratification.
|
1.Compact structure, tight, no dust pollution, safety and health, low noise.
2.Simple installation, easy to operate, the transport is well adapted to the requirements of the filling machine.
3.Applicable to the 2.7m storey-high clean workshop.
|
