7.5Kw Rotary Automated Tablet Press Machine High Speed Tablet Press
Price:
GZPK-45/103000$ GZPK-55/106000$ GZPK-55/109000$
MOQ:
1
Delivery Time:
Negotiable
Brand:
Canaan Kaixinlong
Product Description
Product overview:
Automated High-Speed Rotary Tablet Press High Speed Rotary Tablet Tablet Press
Model GZPK-45/55/75 Double Discharge High Speed Rotary Tablet Press is a product of British Manistee Company. After continuous technological innovation and improvement, it concentrates on the technical characteristics of the domestic automatic high speed rotary tablet press, featuring higher degree of automation, better operability, faster production speed, stronger stability performance and lower working noise. Its technology is located in the domestic leading level.
Reference display charts:

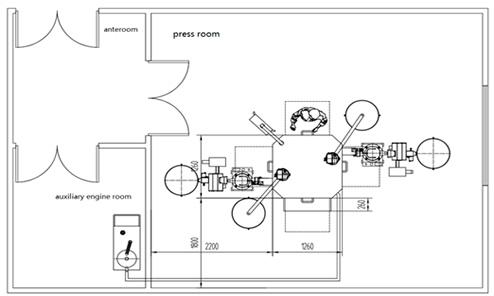

Reference Layout Diagram:
|
Auxiliary machine:
1.Vacuum cleaner (standard)
2.Gold inspection machine (optional)
3.Screen machine (optional)
4.Vacuum feeder (optional)
5.Lift feeder (optional)
|
 |
Technical parameters:
| Model | GZPK-45 | GZPK-55 | GZPK-75 |
| Capacity (Tablets/h) | 405000 | 495000 | 675000 |
| No.of station | 45 | 55 | 75 |
| Max.tablet diameter(mm) | 25 | 16 | 13 |
| Rotation speed (r/min) | 75 | 75 | 75 |
| Main.tablet diameter(KN) | 100 | 100 | 100 |
| Pre-pressure(KN) | 20 | 20 | 20 |
| Main.filling depth(mm) | 20 | 20 | 20 |
| Dia.of.die(mm) | 38.1 | 30.16 | 24 |
| Length of punch(mm) | 133.6 | 133.6 | 133.6 |
| Total power(Kw) | 7.5(frequency conversion11) | ||
| Overall weight(Kg) | 4580 | ||
| Overall diemensions(mm) | 1520X1260X1850 | ||
| Noise | ≤75DB(A) | ||
The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.
