Automatic Types Of Tablet Compression Machine High Speed Rotary
Price:
GZPK-45/103000$ GZPK-55/106000$ GZPK-55/109000$
MOQ:
1
Delivery Time:
Negotiable
Brand:
Canaan Kaixinlong
Product Description
Product overview:
Tablet Press For Medical Purposes Double Discharge Automatic High Speed Rotary Tablet Press Tablet Machine Manufacturers
Model GZPK-45/55/75 Double Discharge High Speed Rotary Tablet Press is a product of British Manistee Company. After continuous technological innovation and improvement, it concentrates on the technical characteristics of the domestic automatic high speed rotary tablet press, featuring higher degree of automation, better operability, faster production speed, stronger stability performance and lower working noise. Its technology is located in the domestic leading level.
Technical parameters:
| Model | GZPK-45 | GZPK-55 | GZPK-75 |
| Capacity (Tablets/h) | 405000 | 495000 | 675000 |
| No.of station | 45 | 55 | 75 |
| Max.tablet diameter(mm) | 25 | 16 | 13 |
| Rotation speed (r/min) | 75 | 75 | 75 |
| Main.tablet diameter(KN) | 100 | 100 | 100 |
| Pre-pressure(KN) | 20 | 20 | 20 |
| Main.filling depth(mm) | 20 | 20 | 20 |
| Dia.of.die(mm) | 38.1 | 30.16 | 24 |
| Length of punch(mm) | 133.6 | 133.6 | 133.6 |
| Total power(Kw) | 7.5(frequency conversion11) | ||
| Overall weight(Kg) | 4580 | ||
| Overall diemensions(mm) | 1520X1260X1850 | ||
| Noise | ≤75DB(A) | ||
The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.
Working principle expansion diagram:

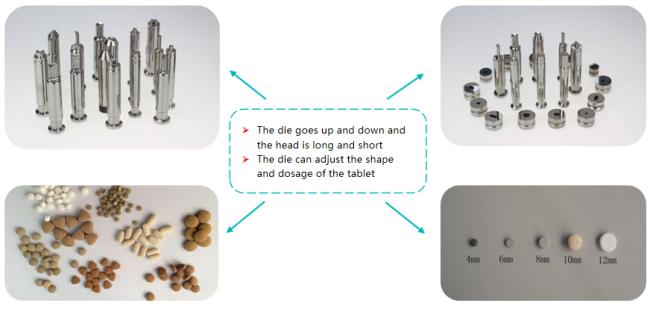

Stamping die:
Working turntable:
|
The turntable rotates for one week to drive the die to pass through the feeding mechanism, filling mechanism, pressure mechanism, and tablet discharging mechanism in order to complete the process of continuous tablet pressing.
|
 |
1.Rotary speed control;
2.On the operation interface, press "speed up", "speed down", key to the turntable for stepless speed regulation
|

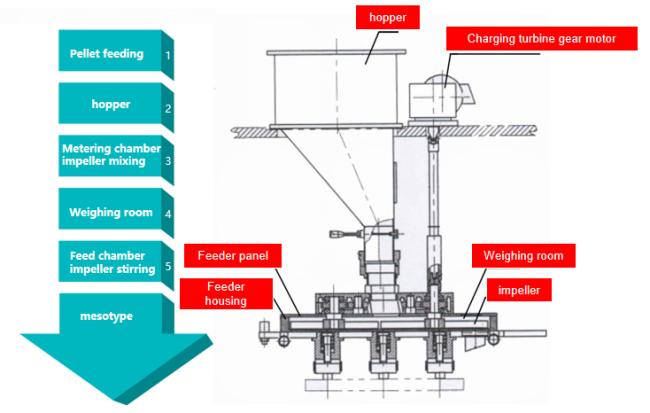

Forced feeder:
