Stable Automatic Tablet Press Machine large Capacity 7.5Kw Pill Tablet Press Machine
Price:
GZPK-45/103000$ GZPK-55/106000$ GZPK-55/109000$
MOQ:
1
Delivery Time:
Negotiable
Brand:
Canaan Kaixinlong
Product Description
Product overview:
High Speed Rotary Tablet Press Double Discharge Automatic High Speed Rotary Tablet Press Tablet Machine Manufacturers
Model GZPK-45/55/75 Double Discharge High Speed Rotary Tablet Press is a product of British Manistee Company. After continuous technological innovation and improvement, it concentrates on the technical characteristics of the domestic automatic high speed rotary tablet press, featuring higher degree of automation, better operability, faster production speed, stronger stability performance and lower working noise. Its technology is located in the domestic leading level.
Technical parameters:
| Model | GZPK-45 | GZPK-55 | GZPK-75 |
| Capacity (Tablets/h) | 405000 | 495000 | 675000 |
| No.of station | 45 | 55 | 75 |
| Max.tablet diameter(mm) | 25 | 16 | 13 |
| Rotation speed (r/min) | 75 | 75 | 75 |
| Main.tablet diameter(KN) | 100 | 100 | 100 |
| Pre-pressure(KN) | 20 | 20 | 20 |
| Main.filling depth(mm) | 20 | 20 | 20 |
| Dia.of.die(mm) | 38.1 | 30.16 | 24 |
| Length of punch(mm) | 133.6 | 133.6 | 133.6 |
| Total power(Kw) | 7.5(frequency conversion11) | ||
| Overall weight(Kg) | 4580 | ||
| Overall diemensions(mm) | 1520X1260X1850 | ||
| Noise | ≤75DB(A) | ||
The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

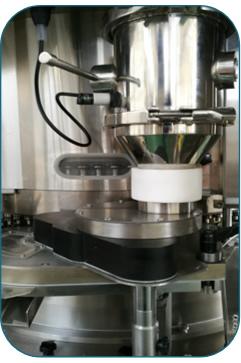

Stepped dosing system:
 |
This equipment [stepped triple impeller feeder
The design of large area overfilling, lengthening dosing section and high-precision forced-feeding system make the difference control of slice weight more accurate;
The double step design buffered the impact force of the material falling, effectively used the feeding area, avoided the parallel feeding blind area, no feeding dead Angle;
comparison
Peer [parallel type doser]
The parallel feeder has a feeding blind area, which is prone to insufficient filling and large difference in weight, and some materials will caking in the feeder.
Inclined barrels, material flow is not ideal, low adaptability.
|

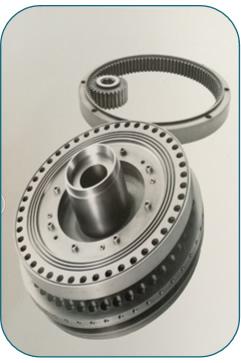

Stable drive train:
 |
The equipment adopts [three-stage transmission]
1.The three-stage transmission system (pulley combination, turbine pair, gear pair), the main shaft does not rotate and the frame is firmly connected, and the main motor power directly drives the impact and rotation;
2.The punch plate rotates around the fixed spindle, making the punch plate surface runout and warp runout tend to zero, which greatly improves the rotating smoothness.
3.The amount of running powder is small, saving the waste caused by running powder;
comparison
Peer-to-peer use of [secondary drive]
The spindle is fixed to the punching disk and the spindle (punching disk) is driven by the main motor via a toothed belt pulley and worm gear. The end runout and radial runout of the punch disk are large and the operation is not smooth, especially at high speeds.
|

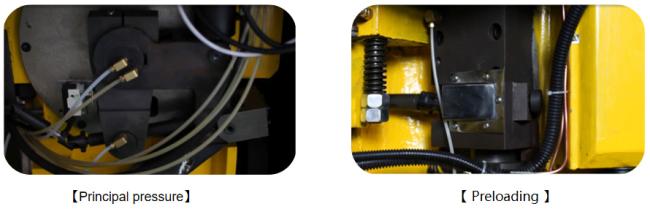

Hydraulic system:
Main pressure, prepressure twice forming, large pressure wheel, five-column frame structure, so that the machine has a long pressure time, stable work and load-bearing load without deformation ability. Ensure piece weight accuracy and hardness while maintaining smooth operation and low noise.
|

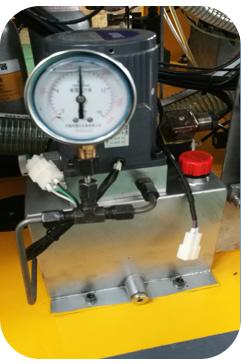

【 Stable hydraulic system 】 |
The hydraulic pump station and accumulator form a static pressure preservation system, which realizes the elastic support and overload protection of the pre-pressing wheel and the main pressing wheel, and ensures the smoothness and low noise of the pressing process.
|
