Industrial High Speed Rotary Tablet Press Machine universal structure
Price:
GZPK-26/ 56000$ GZPK-32/ 57000$ GZPK-40/ 60000$
MOQ:
1
Delivery Time:
Negotiable
Brand:
Canaan Kaixinlong
Product Description
Product overview:
Tablet Press For Medical Purposes Tablet Production Equipment Tablet Machine Manufacturers
GZPK Series Automatic High Speed Rotary Tablet Press is the second generation product newly launched by our company. It concentrates the technical features of domestic automatic high-speed rotary tablet press and makes significant improvements in machine structure and operation control. The machine structure adopts universal seat, universal shape, and replaceable punch plate body, thus realizing the interchangeability of one machine with multiple models. The operation control adopts industrial PLC automatic control, leaving more space for development.
Reference display charts:
Technical parameters:
| Model | GZPK-26 | GZPK-32 | GZPK-40 |
| Capacity (Tablets/h) | 160000 | 210000 | 260000 |
| No.of station | 26 | 32 | 40 |
| Max.tablet diameter(mm) | 25 | 16 | 13 |
| Rotation speed (r/min) | 11-102 | 11-105 | 11-105 |
| Main.tablet diameter(KN) | 100 | 80 | 80 |
| Pre-pressure(KN) | 20 | 20 | 20 |
| Main.filling depth(mm) | 20 | 16 | 16 |
| Dia.of.die(mm) | 38.1 | 30.16 | 24.01 |
| Length of punch(mm) | 133.6 | 133.6 | 133.6 |
| Total power(Kw) | 7.5 | ||
| Overall weight(Kg) | 1800 | ||
| Overall diemensions(mm) | 1170×1000(+530)×1950 | ||
| Noise | ≤75DB(A) | ||
The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

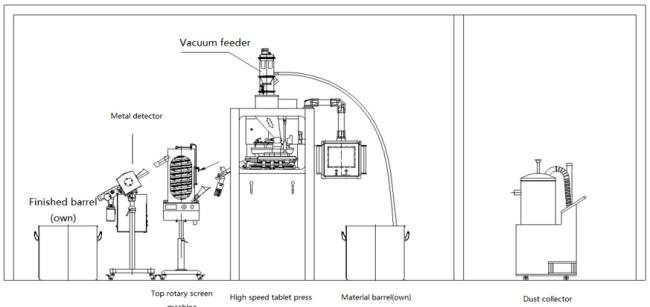

Work flow:
