Pharma Auger Hard Capsule Filling Machine Automatic transfer
Price:
38000$
MOQ:
1
Delivery Time:
Negotiable
Brand:
Canaan Kaixinlong
Product Description
Capsule Filling Machine Manufacturer Powder Capsule Filling Machine Hard Capsule Filling Machine Filling Machine

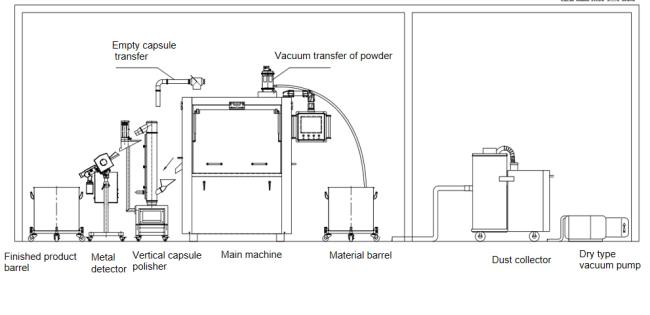

Display diagram for the reference:
Technical parameters:
| Output | 2500Capsules/min |
| No.of segment bores | 18 |
| Suitable fof capsule | 00#-5# |
| Total power | 8Kw(Standard configuration) |
| Overall weight | 1650Kgs |
| Overall diemensions | 1230mm×1175(+382)mm×1955mm |
| Noise | ≤75DB(A) |
| Pressure | 0.4 ~ 0.7Mpa |
| Air consumption | ≤9m³ |
| Vacuum | -0.03 ~ -0.06Mpa |
| Filling error | ±2.5%~±5% |
The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.
Filling-type metering filling:
A-f represents the punching rod of each group, during the interval after the interval time the angle. The powder in the measuring plate mold hole is compacted by each group punching rod once. When the charging rod is lifted from the die hole, the powder box rotates, and the powder on the metering plate will automatically fill the remaining space in the die hole. Fill once, compaction once, until the sixth time, the punching rod will poke the powder column in the mold hole out of the measuring plate, so that it will fall into the empty capsule below, complete the filling work.
Use the relative movement between the scraping powder block and the measuring plate to scrape the excess powder on the surface of the measuring plate to ensure the measurement requirements of the powder column.
The characteristics of the packing-type measurement method
1. The loading amount is accurate, and the difference of the loading amount of> 0.3g is controlled within ± 3%.
2. Adjust the lifting height of the punching rod to fine-tune the dose of drug filling.
Capsule feeding method:
|
|
Feeding manually:
1.The capsule was manually added to the capsule bucket.
2.Applicable for smaller batch production
|
|
|
Automatic transfer of empty capsule(option)
The bottom capsule delivery tube is connected to the compressed air, and the automatic capsule delivery machine delivers the capsule to the capsule bucket, without the need for manual capsule addition.
Automatic bag delivery machine is easy to operate, can automatically start and stop feeding, to ensure the continuity of the machine operation.
|

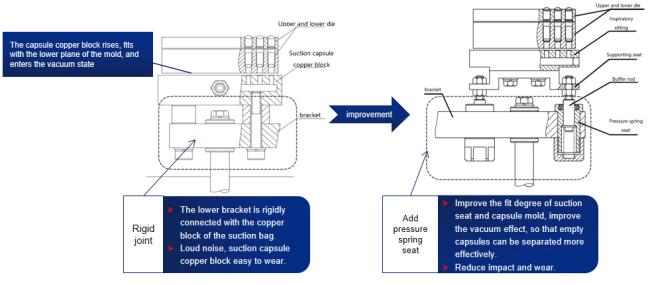

Vacuum separation mechanism:
