Medical Automatic Capsule Filling Machine powerful Powder Capsule Filling Device
Price:
25000$
MOQ:
1
Delivery Time:
Negotiable
Brand:
Canaan Kaixinlong
Product Description
Overview of the machine:
Powder Capsule Filling Machine High Speed Capsule Filling Machine Capsule Filling Capsule Device Medical Device
The CFK-1250 series capsule filling machine designed and produced by our factory has been improved and innovated for many times in the original models, which is the preferred equipment for hospitals or small and medium-sized pharmaceutical factories, replacing the original semi-automatic capsule filling equipment.
The whole machine adopts intermittent rotary mechanism and quantitative dose filling. Suitable for 00 # -5 # capsule powder and pellets filling, and can be selected with automatic bag delivery machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.
Technical parameters:
| Output | 1250Capsules/min |
| No.of segment bores | 9 |
| Suitable fof capsule | 00#-5# |
| Total power | 5.6Kw(Standard configuration) |
| Overall weight | 1200Kgs |
| Overall diemensions | 1085+(435)mm*1015(+252)mm*1880mm |
| Noise | ≤75DB(A) |
| Pressure | 0.4 ~ 0.7Mpa |
| Air consumption | ≤6m³ |
| Vacuum | -0.03 ~ -0.06Mpa |
| Filling error | ±2.5%~±5% |
The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

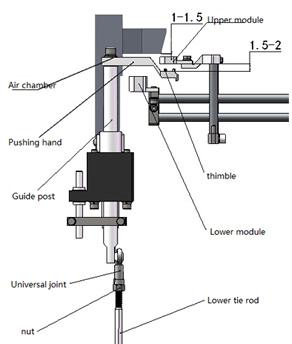

Rejection station:
|
Use
Some empty capsules may keep the body cap still for some reason, and remain in the upper module hole; to prevent mixing into the finished product, they are removed before the capsule is closed.
Principle
A push hand that can reciprocate up and down, located between the upper module and the lower module, with a thimble hand. When the upper and lower modules rotate, the push hand stops at the lower limit position and the thimble breaks away from the upper module. When the module stops at this station, the push hand goes up and the thimble mounted on the push hand is inserted into the upper module hole.
①. If there is a pulled out capsule cap in the upper mold hole, the upward top has no impact on the capsule cap.
②. If there is an open empty capsule in the upper mold hole, the upper module is pushed out by the upward thimble and sucked into the air chamber.
|
 |
Locking station:
|
Use
Lock the capsule of the push rod to meet the requirements of the finished product.
Principle
The upper and lower modules are rotated to the lock, when the axis of the upper and lower modules overlap. The upper baffle above the module begins to move against the top bar below. The upper baffle presses the capsule cap, the top rod rises, and the capsule cap body is closed and locked
|
 |
