Pharmaceutical Automatic Capsule Filling Machine Quantitative Powder Capsule Production Machine
Price:
25000$
MOQ:
1
Delivery Time:
Negotiable
Brand:
Canaan Kaixinlong
Product Description
Overview of the machine:
Powder Capsule Filling Machine High Speed Capsule Filling Machine Pharmaceutical Equipment Capsule Production Equipment
The CFK-1250 series capsule filling machine designed and produced by our factory has been improved and innovated for many times in the original models, which is the preferred equipment for hospitals or small and medium-sized pharmaceutical factories, replacing the original semi-automatic capsule filling equipment.
The whole machine adopts intermittent rotary mechanism and quantitative dose filling. Suitable for 00 # -5 # capsule powder and pellets filling, and can be selected with automatic bag delivery machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.
Technical parameters:
| Output | 1250Capsules/min |
| No.of segment bores | 9 |
| Suitable fof capsule | 00#-5# |
| Total power | 5.6Kw(Standard configuration) |
| Overall weight | 1200Kgs |
| Overall diemensions | 1085+(435)mm*1015(+252)mm*1880mm |
| Noise | ≤75DB(A) |
| Pressure | 0.4 ~ 0.7Mpa |
| Air consumption | ≤6m³ |
| Vacuum | -0.03 ~ -0.06Mpa |
| Filling error | ±2.5%~±5% |
The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.
Three-dimensional adjustment mechanism:
1.Eliminate the metering plate, copper ring natural deformation degree, uniform clearance, reduce the phenomenon of powder leakage;
2.Easy to disassemble and disassemble, easy to clean;
3.Ensure device differences.

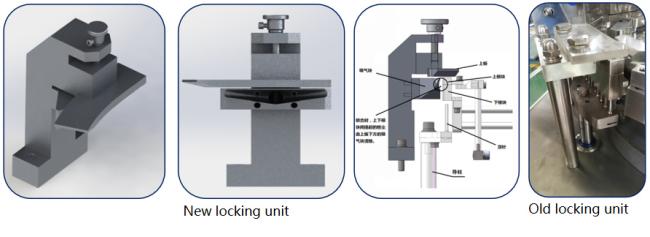

Locking unit:
1.The front slope can make the capsule ready to lock settle down in advance to avoid the phenomenon of the old locking device cutting cap and flying cap.
2.Added the locking cleaning device, locking while locking the sac cleaning block to work, remove the fine dust raised between the upper and lower molds.
