Quantitative Powder Capsule Filling Machine rotary Capsule Device
Price:
38000$
MOQ:
1
Delivery Time:
Negotiable
Brand:
Canaan Kaixinlong
Product Description
Overview of the machine:
Capsule Device Medical Device High Quality Capsule Filling Machine Hard Capsule Filling Machine
NJP-2500 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.
Technical parameters:
| Output | 2500Capsules/min |
| No.of segment bores | 18 |
| Suitable fof capsule | 00#-5# |
| Total power | 8Kw(Standard configuration) |
| Overall weight | 1650Kgs |
| Overall diemensions | 1230mm×1175(+382)mm×1955mm |
| Noise | ≤75DB(A) |
| Pressure | 0.4 ~ 0.7Mpa |
| Air consumption | ≤9m³ |
| Vacuum | -0.03 ~ -0.06Mpa |
| Filling error | ±2.5%~±5% |
The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.
Easy to remove the hopper:
 |
The old hopper, loosen the hand wheel on the supporting column when disassembly and cleaning, and stretch on the long pressure spring in the column. Most of the hopper must be extended out of the upper Plexiglass to be removed. During the installation, the pressure spring needs to be squeezed to the bottom before tightening the hand wheel, and the employees need to spend a lot of effort to operate. |
 |
A screw was added to the supporting post, the screw passed through the panel, the top connecting the hopper support, and the motor and turbine box were installed at the bottom. During hopper disassembly and installation, the whole lifting process can be operated on the PLC operation panel. Due to the use of a single screw support, the work when there is a slight shaking phenomenon. |
 |
The split structure is directly fixed on the lower plane of the roof, with simple structure, stable and reliable when working, and convenient hopper disassembly. Release the fast interface of the material cylinder, then loosen the four screws on the hopper, then rotate out the small pin on the paddle, you can horizontally pan out of the filling part. |

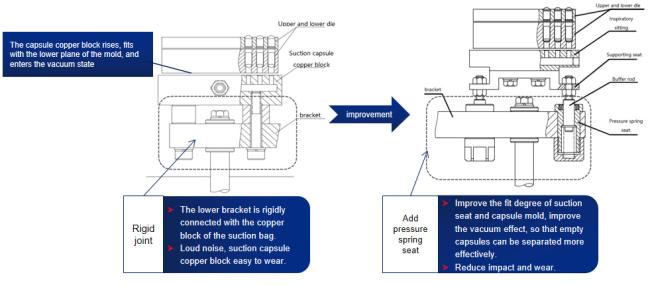

Vacuum separation mechanism:
