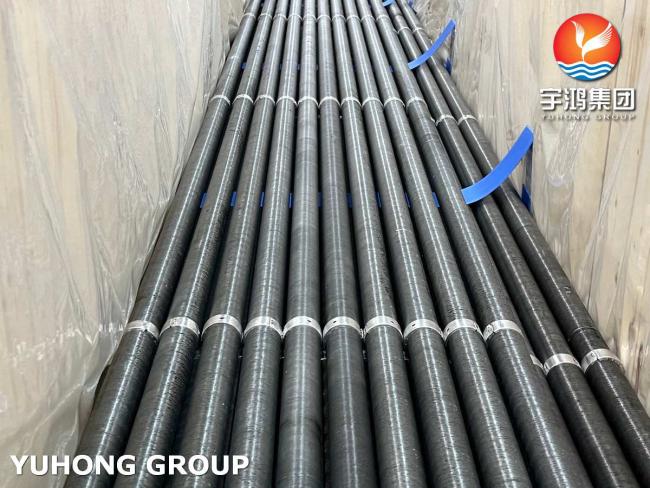

Embedded G Fin Tube ASTM A179 Carbon Steel Fin Tube Fin Material Al1060 For Dry Air Cooler
Embedded G Fin Tube ASTM A179 Carbon Steel with Aluminum Al1060 Fins for Dry Air Cooler
The Embedded G Fin Tube with ASTM A179 carbon steel base tubes and Al1060 aluminum fins is an efficient solution for dry air coolers. This design features embedded fins that enhance mechanical strength and thermal performance, making it ideal for industrial cooling systems.
Material Specifications
| Specification | Details |
|---|---|
| Base Tube Material | ASTM A179 Carbon Steel |
| Fin Material | Aluminum Al1060 (High Purity Aluminum) |
| Fin Type | Embedded G-Type |
Chemical Composition
Base Tube (ASTM A179 Carbon Steel)
| ASTM A179 Chemical Composition | ||||
| Element | Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) |
| Content (%) | ≤ 0.06 | 0.27 - 0.63 | ≤ 0.035 | ≤ 0.035 |
Fin Material (Al1060 Aluminum)
| Mechanical Properties of Fin Material (Al1060 Aluminum) | |||
| Property | Tensile Strength | Yield Strength | Elongation |
| Value | ≥ 90 MPa | ≥ 35 MPa | ≥ 25% |
Mechanical Properties
Base Tube (ASTM A179 Carbon Steel)
|
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Fin Material (Al1060 Aluminum)
| Mechanical Properties of Fin Material (Al1060 Aluminum) | |||
| Property | Tensile Strength | Yield Strength | Elongation |
| Value | ≥ 90 MPa | ≥ 35 MPa | ≥ 25% |
Features of Embedded G-Type Fins
- Mechanical Strength: Embedded design ensures a tight bond between the fins and the tube for long-lasting performance.
- Thermal Efficiency: Enhanced surface area for effective heat transfer.
- Corrosion Resistance: High-purity aluminum fins provide excellent resistance to oxidation and environmental corrosion.
- Durability: Ideal for high-temperature and high-pressure applications.
- Lightweight: Aluminum fins reduce the overall weight of the cooling system.
Applications
- Dry Air Coolers: Optimized for fluid cooling without water usage in arid or remote locations.
- Heat Exchangers: Suitable for process cooling in industries such as power generation, petrochemicals, and refineries.
- Oil & Gas: Used in air-cooled heat exchanger systems for hydrocarbon processing.
- Chemical Plants: Efficient cooling solutions for reactors and other process equipment.
Advantages
- High Thermal Performance: Maximized heat dissipation due to the embedded G-fin design.
- Longevity: Resistant to environmental wear and tear, ensuring long-term reliability.
- Cost-Efficiency: Aluminum fins and carbon steel tubes provide an economical and effective solution.
- Customizable: Flexible dimensions and configurations to suit specific application needs.
Conclusion
The Embedded G Fin Tube with ASTM A179 Carbon Steel and Al1060 Aluminum Fins is a robust and efficient choice for dry air cooler applications. Its combination of thermal performance, mechanical strength, and corrosion resistance ensures reliable and effective cooling in industrial processes, making it a preferred solution for industries requiring sustainable and high-performance cooling systems.
