ASTM A179 Carbon Steel Low Fin Tube, High Efficiency Engergy Saving Tube For Boiler
Price:
Negotiable
MOQ:
100KGS
Delivery Time:
7-45 DAYS
Brand:
Yuhong
Product Description

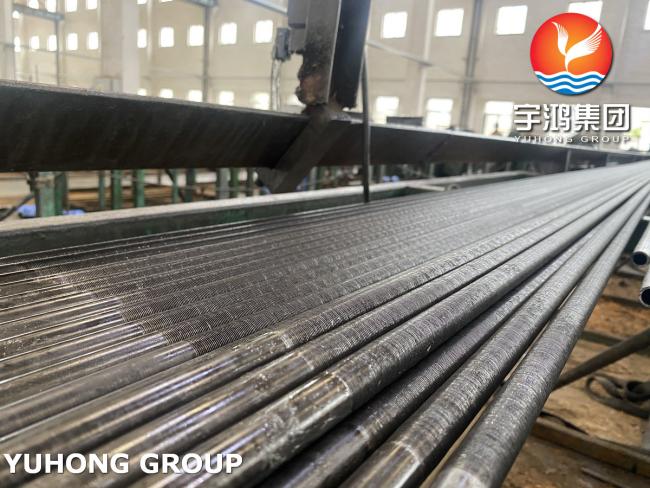

ASTM A179 Carbon Steel Low Fin Tube, High Efficiency Engergy Saving Tube, For Boiler
Key Features:
- Base Tube Material: ASTM A179 Carbon Steel, providing excellent thermal conductivity, durability, and strength.
- Fin Type: Low-Fin Design, enhancing the heat transfer surface while maintaining compact dimensions for improved energy efficiency.
- Application: Tailored for boilers, increasing heat transfer rates and reducing energy consumption.
A179 Material:
| ASTM A179 Chemical Composition | ||||
| Element | Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) |
| Content (%) | ≤ 0.06 | 0.27 - 0.63 | ≤ 0.035 | ≤ 0.035 |
| ASTM A179 Mechanical Properties | ||||
| Property | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness |
| Requirement | ≥ 325 | ≥ 180 | ≥ 35 | Typically ≤ 72 HRB |
Technical Specifications:
| Property | Base Tube (ASTM A179) | Fin Details |
|---|---|---|
| Outer Diameter (OD) | 15.88 mm - 50.8 mm | Customizable based on design |
| Wall Thickness | 1.2 mm - 3.0 mm | - |
| Fin Height | - | 0.8 mm - 1.5 mm |
| Fin Thickness | - | 0.3 mm - 0.5 mm |
| Fin Pitch | - | 10 - 20 fins per inch |
| Fin Material | Same as base tube (ASTM A179) |
Advantages:
- Enhanced Heat Transfer: Increased surface area of the low fins maximizes heat exchange efficiency.
- Compact Design: Allows for reduced equipment size without sacrificing performance.
- High Strength: Suitable for high-pressure and high-temperature boiler environments.
- Energy Saving: Optimized thermal performance leads to lower energy consumption and operational costs.
Applications:
- Industrial Boilers: Enhancing efficiency in power generation and industrial heating systems.
- Heat Recovery Systems: Capturing waste heat to improve overall thermal performance.
- Steam Generators: Supporting efficient steam production in various industries.
