ASTM A106 GR.B Studded Fin Tube With Carbon Steel Q235B Stud Material For Heater
Price:
Negotiable
MOQ:
1 pc
Delivery Time:
7-15DAYS
Brand:
Yuhong
Product Description

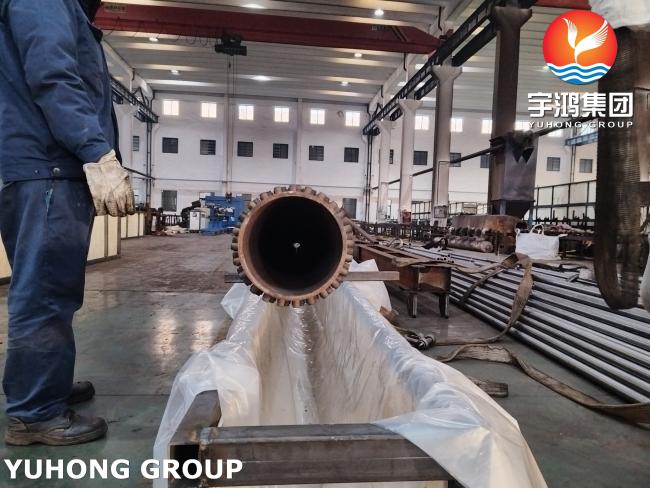

Studded Fin Tube ASTM A106 GR.B With Carbon Steel Q235B Stud Material For Heater
Key Features:
- Base Tube Material: ASTM A106 Gr.B Carbon Steel, offering excellent strength and heat resistance.
- Stud Material: Q235B Carbon Steel, providing high mechanical strength and good weldability.
- Fin Type: Studded Fins, welded for increased heat transfer surface and durability.
- Application: Designed for heaters, particularly in industrial applications requiring efficient heat transfer and durability under high temperatures.
Technical Specifications:
| Property | Base Tube (ASTM A106 Gr.B) | Stud Material (Q235B) |
|---|---|---|
| Outer Diameter (OD) | 25.4 mm - 101.6 mm | Customizable based on design |
| Wall Thickness | 3.0 mm - 12.0 mm | - |
| Stud Diameter | - | 6 mm - 15 mm |
| Stud Height | - | 10 mm - 25 mm |
| Stud Attachment | Resistance welded |
Chemical Composition:
| Element | ASTM A106 Gr.B (Base Tube) | Q235B (Stud Material) |
|---|---|---|
| Carbon (C) | ≤ 0.30% | ≤ 0.22% |
| Manganese (Mn) | 0.29 - 1.06% | 0.30 - 0.70% |
| Phosphorus (P) | ≤ 0.035% | ≤ 0.045% |
| Sulfur (S) | ≤ 0.035% | ≤ 0.050% |
| Silicon (Si) | ≤ 0.10% | ≤ 0.35% |
Mechanical Properties:
| Property | ASTM A106 Gr.B (Base Tube) | Q235B (Stud Material) |
|---|---|---|
| Tensile Strength | 415 MPa - 585 MPa | 375 - 500 MPa |
| Yield Strength | ≥ 240 MPa | ≥ 235 MPa |
| Elongation | ≥ 20% | ≥ 20% |
Advantages:
- Enhanced Heat Transfer: Studded fins increase the surface area for efficient heat exchange.
- Durability: Welded studs provide strong bonding, ensuring reliability under thermal and mechanical stress.
- Cost-Effective: Combining ASTM A106 Gr.B with Q235B offers excellent performance at a reasonable cost.
- Versatile Design: Suitable for heaters in a wide range of industrial environments.
Applications:
- Industrial Heaters: Used in oil refineries, chemical plants, and petrochemical industries.
- Power Generation: Heat transfer in boiler systems.
- Process Equipment: For heat exchangers requiring robust and efficient designs.
