ASTM A213 T5 Fin Material Al1060 Embedded G Fin Tube For Refrigeration System

Price Negotiable
Price: Negotiable
MOQ: 100KGS
Delivery Time: 7DAYS
Brand: Yuhong
Product Description

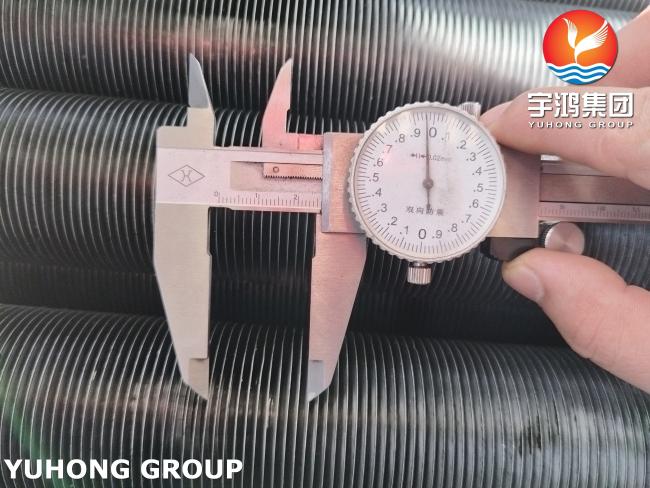

Embedded G Fin Tube ASTM A213 T5 with AL1060 Fin Material for Refrigeration System




Key Features:

  1. Base Tube Material: ASTM A213 T5 Alloy Steel, offering high-temperature strength and excellent resistance to oxidation, which makes it ideal for refrigeration systems operating in demanding conditions.
  2. Fin Material: AL1060 Aluminum, known for its excellent thermal conductivity, corrosion resistance, and lightweight, making it a perfect choice for heat transfer applications in refrigeration.
  3. Fin Type: Embedded G Fin, providing enhanced heat exchange efficiency by increasing the surface area and improving heat transfer performance in refrigeration systems.
  4. Application: Designed specifically for refrigeration systems, optimizing the cooling efficiency of air coolers, evaporators, and condensers in HVAC systems.



Technical Specifications:

Property Base Tube (ASTM A213 T5) Fin Material (AL1060)
Outer Diameter (OD) 15.88 mm - 50.8 mm Customizable based on design
Wall Thickness 1.5 mm - 4.0 mm -
Fin Thickness - 0.3 mm - 0.7 mm
Fin Height - 10 mm - 30 mm
Fin Attachment Mechanically embedded (G-type)



Chemical Composition:

Element ASTM A213 T5 (Base Tube) AL1060 (Fin Material)
Carbon (C) 0.05% - 0.15% ≤ 0.03%
Manganese (Mn) 0.30% - 0.60% ≤ 0.03%
Phosphorus (P) ≤ 0.025% -
Sulfur (S) ≤ 0.025% -
Chromium (Cr) 4.00% - 6.00% -
Nickel (Ni) 1.00% - 2.00% -
Aluminum (Al) - ≥ 99.6%



Mechanical Properties:

Property ASTM A213 T5 (Base Tube) AL1060 (Fin Material)
Tensile Strength ≥ 415 MPa 60 - 100 MPa
Yield Strength ≥ 205 MPa 30 - 50 MPa
Elongation ≥ 30% ≥ 25%



Advantages:

  1. Enhanced Heat Transfer: The embedded G-fin design increases surface area, optimizing heat dissipation and improving the refrigeration system's efficiency.
  2. Corrosion Resistance: AL1060 fins are highly resistant to oxidation and corrosion, ensuring long-lasting performance in refrigeration applications.
  3. High-Temperature Durability: ASTM A213 T5's resistance to high temperatures makes it ideal for refrigeration systems exposed to thermal cycling.
  4. Lightweight and Cost-Effective: AL1060 aluminum fins are lightweight and cost-effective, reducing overall system weight while maintaining high thermal conductivity.



Applications:

  • Refrigeration Systems: Used in air coolers, evaporators, and condensers to enhance heat exchange efficiency.
  • HVAC Systems: For cooling in residential, commercial, and industrial HVAC systems.
  • Chillers and Coolers: Used in industrial refrigeration systems to cool fluids and gases efficiently.
  • Food Processing: Cooling systems for perishable goods storage and transport.
