Air Cooler Tube ASTM A179 Carbon Steel Embedded Fin Tube With Al1060 Fin
Price:
Negotiable
MOQ:
100KGS
Delivery Time:
7-50DAYS
Brand:
Yuhong
Product Description

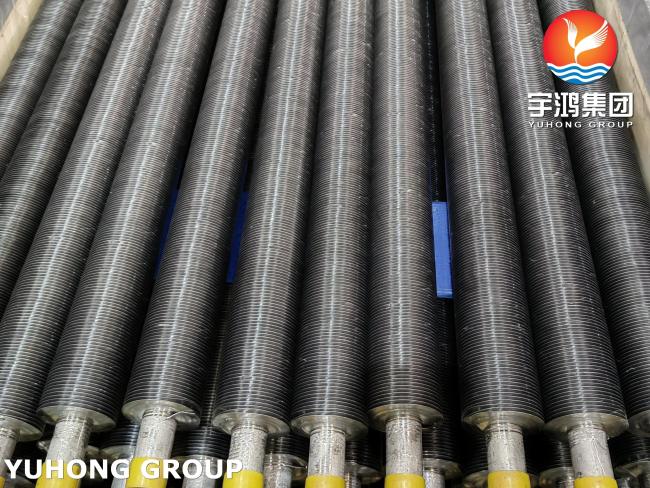

Air Cooler Tube ASTM A179 Carbon Steel Embedded Fin Tube with AL1060 Fin
Key Features:
- Base Tube Material: ASTM A179 Carbon Steel, providing good strength, durability, and heat transfer capabilities. It is commonly used in air cooler applications due to its excellent mechanical properties and cost-effectiveness.
- Fin Material: AL1060 Aluminum, a material known for its high thermal conductivity, light weight, and resistance to corrosion, making it ideal for efficient heat transfer in air cooler systems.
- Fin Type: Embedded Fin, where the fins are integrally bonded to the tube surface, enhancing the overall heat exchange efficiency while minimizing any thermal resistance between the tube and the fins.
- Application: Specifically designed for use in air cooler systems, the embedded fin tube offers high-performance cooling in industrial, HVAC, and power generation systems.
Technical Specifications:
| Property | Base Tube (ASTM A179 Carbon Steel) | Fin Material (AL1060 Aluminum) |
|---|---|---|
| Outer Diameter (OD) | 15.88 mm - 50.8 mm | Customizable based on design |
| Wall Thickness | 1.0 mm - 3.0 mm | - |
| Fin Thickness | - | 0.3 mm - 1.5 mm |
| Fin Height | - | 10 mm - 30 mm |
| Fin Attachment | Embedded (integral bonding) | - |
Chemical Composition:
| Element | ASTM A179 Carbon Steel (Base Tube) | AL1060 Aluminum (Fin Material) |
|---|---|---|
| Carbon (C) | ≤ 0.06% | ≤ 0.03% |
| Manganese (Mn) | 0.30% - 0.90% | ≤ 0.03% |
| Phosphorus (P) | ≤ 0.035% | - |
| Sulfur (S) | ≤ 0.035% | - |
| Chromium (Cr) | ≤ 0.30% | - |
| Nickel (Ni) | ≤ 0.25% | - |
| Aluminum (Al) | - | ≥ 99.0% |
Mechanical Properties:
| Property | ASTM A179 Carbon Steel (Base Tube) | AL1060 Aluminum (Fin Material) |
|---|---|---|
| Tensile Strength | 335 - 485 MPa | 70 - 110 MPa |
| Yield Strength | ≥ 205 MPa | 30 - 55 MPa |
| Elongation | ≥ 30% | ≥ 20% |
Advantages:
- Enhanced Heat Transfer: The embedded fin design increases the surface area for heat exchange, improving cooling efficiency in air cooler systems.
- Corrosion Resistance: AL1060 aluminum provides superior resistance to corrosion, making it a long-lasting solution for air cooler applications, especially in humid or corrosive environments.
- Cost-Effective: ASTM A179 carbon steel offers a more affordable solution compared to other high-alloy materials, without compromising on mechanical strength.
- Durability and Strength: The combination of ASTM A179 carbon steel and AL1060 aluminum ensures the tube remains strong and reliable under high operational pressures and temperatures.
Applications:
- Air Coolers: Widely used in air cooler systems, where high-efficiency heat transfer is required for cooling air or fluids.
- HVAC Systems: In both residential and industrial HVAC units to maintain efficient cooling performance.
- Industrial Cooling: Cooling applications in power plants, petrochemical plants, and manufacturing facilities.
- Heat Exchangers: Used for cooling water, oil, or other fluids in heat exchanger systems across various industries.
