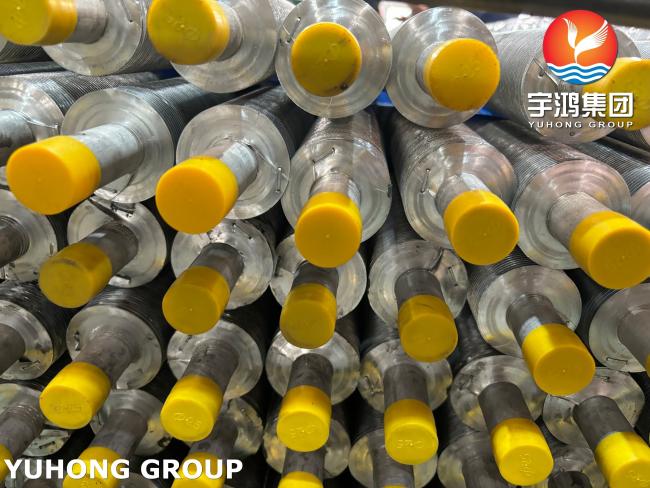

ASTM A179 Carbon Steel Embedded Fin Tube With Al1060 Fin For HVAC System
Price:
Negotiable
MOQ:
100KGS
Delivery Time:
7-50DAYS
Brand:
Yuhong
Product Description
ASTM A179 Carbon Steel Embedded Fin Tube with AL1060 Fin Material for HVAC System Applications
Key Features:
- Base Tube Material: ASTM A179 Carbon Steel, offering excellent strength, durability, and heat transfer properties, commonly used in HVAC systems due to its affordability and reliability.
- Fin Material: AL1060 Aluminum, known for its exceptional thermal conductivity, lightweight, and resistance to corrosion, making it ideal for high-efficiency heat transfer in HVAC systems.
- Fin Type: Embedded Fin, which is integrally bonded to the base tube to create a highly effective heat exchange surface, improving overall system performance.
- Application: Designed for use in HVAC systems, particularly in heat exchangers, cooling coils, and air handling units to enhance air conditioning and ventilation efficiency.
Technical Specifications:
| Property | Base Tube (ASTM A179 Carbon Steel) | Fin Material (AL1060 Aluminum) |
|---|---|---|
| Outer Diameter (OD) | 15.88 mm - 50.8 mm | Customizable based on design |
| Wall Thickness | 1.0 mm - 3.0 mm | - |
| Fin Thickness | - | 0.3 mm - 1.5 mm |
| Fin Height | - | 10 mm - 30 mm |
| Fin Attachment | Embedded (integral bonding) | - |
Chemical Composition:
| Element | ASTM A179 Carbon Steel (Base Tube) | AL1060 Aluminum (Fin Material) |
|---|---|---|
| Carbon (C) | ≤ 0.06% | ≤ 0.03% |
| Manganese (Mn) | 0.30% - 0.90% | ≤ 0.03% |
| Phosphorus (P) | ≤ 0.035% | - |
| Sulfur (S) | ≤ 0.035% | - |
| Chromium (Cr) | ≤ 0.30% | - |
| Nickel (Ni) | ≤ 0.25% | - |
| Aluminum (Al) | - | ≥ 99.0% |
Mechanical Properties:
| Property | ASTM A179 Carbon Steel (Base Tube) | AL1060 Aluminum (Fin Material) |
|---|---|---|
| Tensile Strength | 335 - 485 MPa | 70 - 110 MPa |
| Yield Strength | ≥ 205 MPa | 30 - 55 MPa |
| Elongation | ≥ 30% | ≥ 20% |
Advantages:
- Improved Heat Transfer: The embedded fin design significantly increases the heat exchange surface area, enhancing the cooling or heating performance of HVAC systems.
- Corrosion Resistance: AL1060 aluminum provides strong resistance to corrosion, ensuring that the fin tube remains durable even in humid or aggressive environments.
- Cost-Effective: The combination of ASTM A179 carbon steel and AL1060 aluminum offers a budget-friendly solution without compromising on performance, making it a popular choice for HVAC systems.
- Long-Term Durability: Both the carbon steel base tube and aluminum fins provide excellent strength and longevity, even under extended use and varying environmental conditions.
Applications:
- HVAC Systems: Used in air conditioning units, cooling coils, and ventilation systems to enhance heat exchange and improve energy efficiency.
- Heat Exchangers: Widely used in HVAC heat exchangers for cooling or heating air, water, or other fluids.
- Cooling Coils: For cooling applications in both residential and commercial buildings, improving airflow and temperature control.
- Air Handling Units: Commonly found in air handling units (AHUs) for managing air distribution and temperature regulation.
