ASTM A312 TP304 Studded Finned Tube with 11Cr Fins for Oil and Gas Industry
Studded Finned Tube ASTM A312 TP304 with 11Cr Fins for Oil and Gas Industry

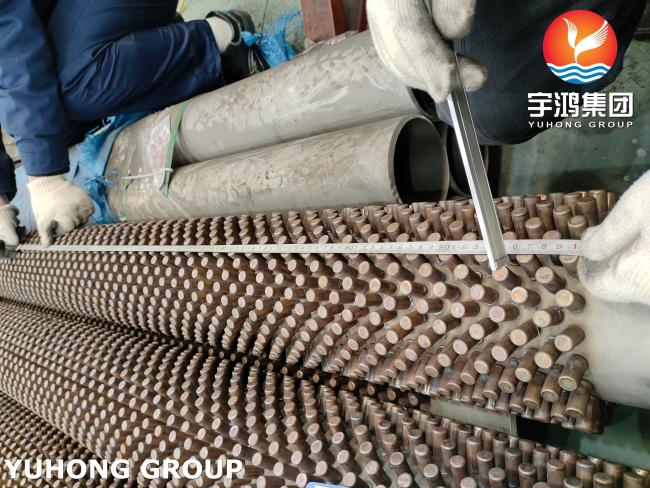

Studded Finned Tube- This type of heat exchanger tube has studs—raised, round projections—welded or otherwise affixed to its surface, instead of traditional fins or plates. Studded tubes increase the surface area much like finned tubes, thus improving heat transfer efficiency between fluids or between a fluid and the tube's surroundings.
A Studded Finned Tube ASTM A312 TP304 with 11Cr Fins is a specialized type of heat exchanger tube designed for enhanced heat transfer in high-temperature and corrosive environments. It combines the properties of ASTM A312 TP304 stainless steel with 11Cr (11% Chromium) fins to provide excellent performance in demanding applications.
Advantages of Studded Finned Tubes:
- Enhanced Heat Transfer: the studded design increases the surface area and promotes turbulence, leading to better heat transfer compared to smooth tubes.
- High-Temperature Performance: the combination of TP304 stainless steel and 11Cr fins ensures excellent performance in high-temperature environments.
- Corrosion Resistance: both the base tube (TP304) and the fins (11Cr) offer strong resistance to oxidation and corrosion, making the tube suitable for harsh environments.
- Durability: the robust construction and material properties ensure long-term reliability in demanding applications.
Comparison with Other Finned Tubes
| Feature | Studded Finned Tube | Serrated Finned Tube | Helical Finned Tube |
| Fin Design | Studs (cylindrical protrusions) | Serrated (notched or grooved) | Smooth, helical fins |
| Heat Transfer | High (due to turbulence) | High (due to increased surface area) | Moderate |
| Corrosion Resistance | Excellent (11Cr fins + TP304) | Excellent (TP304H) | Good (depends on material) |
| Applications | High-temperature, corrosive environments | High-efficiency heat exchangers | General heat transfer |
Fins: 11Cr (11% Chromium)
The fins are made of a material containing 11% Chromium, which provides good oxidation resistance and high-temperature strength.
11Cr Fins Properties:
- High resistance to oxidation and scaling at elevated temperatures.
- Suitable for use in environments with high sulfur content or other corrosive elements.
Material Composition of ASTM A312 TP304
| Element | Composition (%) |
| Carbon (C) | 0.08 max |
| Manganese (Mn) | 2.00 max |
| Phosphorus (P) | 0.045 max |
| Sulfur (S) | 0.030 max |
| Silicon (Si) | 1.00 max |
| Chromium (Cr) | 18.00 – 20.00 |
| Nickel (Ni) | 8.00 – 11.00 |
| Nitrogen (N) | 0.10 max |
| Iron (Fe) | Balance |
Mechanical Properties of ASTM A312 TP304
| Property | Value |
| Tensile Strength | ≥ 515 MPa (75,000 psi) |
| Yield Strength | ≥ 205 MPa (30,000 psi) |
| Elongation (in 2 inches) | ≥ 40% |
| Hardness (Brinell) | ≤ 192 HB |
Applications of Studded Finned Tube ASTM A312 TP304 with 11Cr Fins:
1. Power Generation:
Boilers and Superheaters: Used in thermal power plants for steam generation and superheating, where high-temperature strength and corrosion resistance are critical.
Heat Recovery Steam Generators (HRSGs): Utilized in combined-cycle power plants to recover waste heat from gas turbines.
2. Petrochemical Industry:
Heat Exchangers: Used in refineries and chemical processing plants for efficient heat transfer in reactors, condensers, and reboilers.
Furnaces and Preheaters: Employed in high-temperature processes where resistance to oxidation and corrosion is essential.
3. Oil and Gas Industry:
Gas Coolers and Preheaters: Used in upstream and downstream operations to cool or preheat process gases.
Waste Heat Recovery: Utilized in systems designed to recover heat from exhaust gases or flue gases in oil refineries and gas processing plants.
4. Waste Heat Recovery Systems:
Industrial Processes: Used in industries such as cement, steel, and glass manufacturing to recover waste heat from exhaust gases and improve energy efficiency.
Combustion Air Preheaters: Employed to preheat combustion air using waste heat from flue gases, enhancing the efficiency of industrial boilers and furnaces.
5. HVAC Systems:
Air Heaters: Used in heating, ventilation, and air conditioning systems for efficient heat exchange in air handling units.
Heat Recovery Ventilators: Employed to recover heat from exhaust air in commercial and industrial buildings.
6. Aerospace and Defense:
Heat Exchangers: Used in cooling systems for aerospace applications, where high strength and corrosion resistance are critical.
7. Industrial Heating Systems:
Furnaces and Kilns: Used in high-temperature heating systems for processes such as metal heat treatment, ceramic firing, and glass manufacturing.
Thermal Fluid Heaters: Employed in systems that use thermal fluids for heat transfer in industrial processes.
