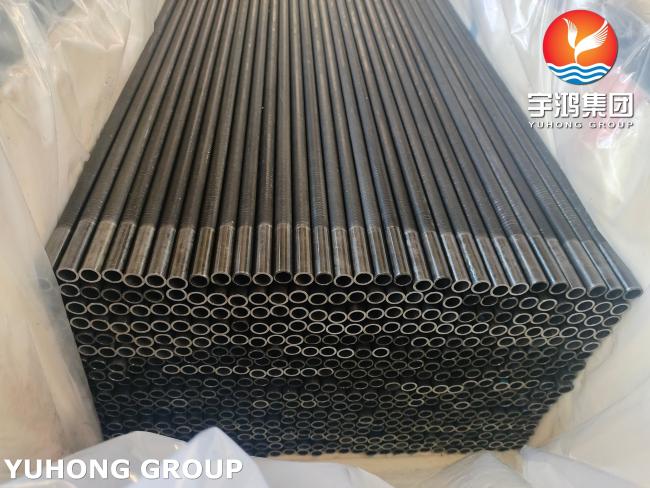

Carbon Steel Low Fin Tube For Oil Coolers And Condensers
Carbon Steel Low Fin Tube
Low fin tubes (also called integral fin tubes) are used in heat exchangers, boilers, and condensers to enhance heat transfer efficiency. Their strength depends on material properties, fin geometry, and manufacturing processes. Below is a detailed breakdown of carbon steel low fin tube strength.
1. Material Strength of Carbon Steel
Carbon steel low fin tubes are typically made from ASTM A179, A192, or A210 grades. Their mechanical properties include:
| Property | ASTM A179 | ASTM A192 | ASTM A210 |
| Tensile Strength | ≥325 MPa | ≥325 MPa | ≥415 MPa |
| Yield Strength | ≥180 MPa | ≥180 MPa | ≥255 MPa |
| Elongation (%) | ≥35% | ≥35% | ≥30% |
| Hardness (HB) | ≤72 HRB | ≤77 HRB | ≤79 HRB |
- A179: Best for low-pressure heat exchangers.
- A192: Higher pressure applications (boilers).
- A210 (Grade A1): Higher strength for power plants.
2. Fin Geometry & Its Impact on Strength Low fin tubes have helical fins extruded from the base tube, which affects structural integrity:
| Parameter | Typical Range | Effect on Strength |
| Fin Height | 0.8–1.5 mm | ↑ Height → ↓ Burst Pressure |
| Fin Pitch | 19–40 fins/inch | Denser fins → Slightly weaker |
| Base Wall Thickness | 1.2–3.0 mm | Thicker → Higher pressure rating |
- Burst Pressure: Typically 20–30% lower than smooth tubes due to fin formation.
- Collapse Strength: Fins add rigidity but reduce internal pressure resistance.
3. Strength Comparison: Low Fin vs. Smooth Tubes
| Property | Low Fin Tube | Smooth Tube |
| Tensile Strength | Similar | Similar |
| Burst Pressure | ~70–80% of smooth | 100% (reference) |
| Fatigue Resistance | Slightly lower | Higher |
| Corrosion Resistance | Similar (but fins trap deposits) | Better for clean fluids |
4. Applications & Limitations
- Where Carbon Steel Low Fin Tubes Excel:
✔ Heat Exchangers (oil coolers, condensers)
✔ Boiler Economizers (improved heat transfer)
✔ Low-Pressure Steam Systems
- Where They Should Be Avoided:
✖ High-Pressure Steam (>1000 psi)
✖ Highly Corrosive Fluids (fins trap deposits)
✖ High-Vibration Environments (risk of fin fatigue)
5. Conclusion
Strength ≈ 70–90% of smooth tubes (depends on fin design).
Best for heat transfer efficiency, not extreme pressure.
Material choice (A179/A192/A210) affects performance.
