ASTM B111 C12200 Phosphorized Copper Low Fin Tubes For Seawater Condensers
Low Fin Tubes ASTM B111 C12200 Phosphorized Copper Tube For Seawater Condensers

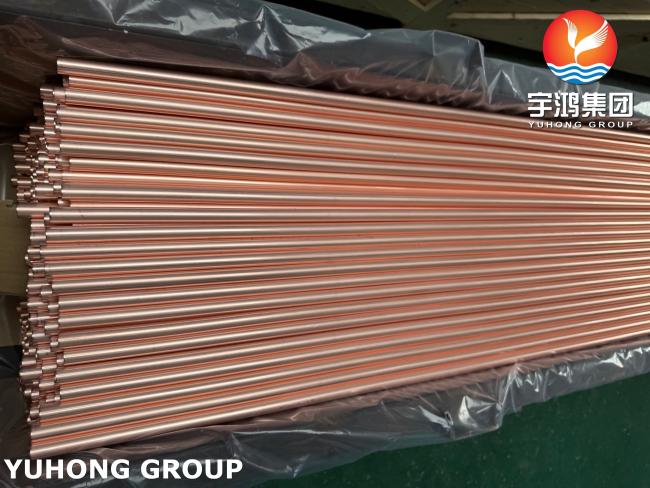

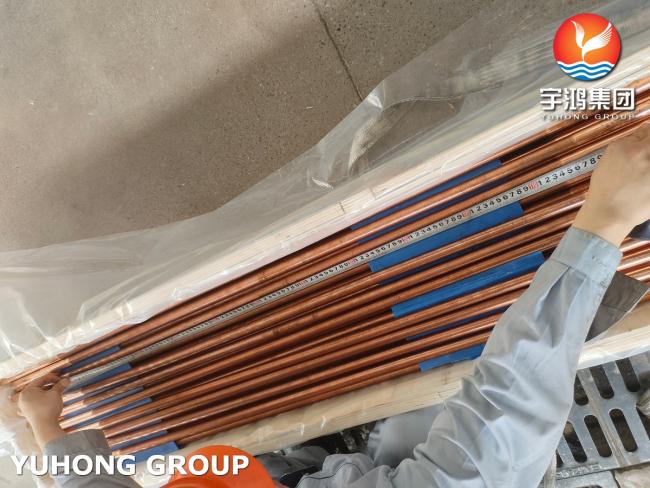

ASTM B111 C12200 copper tube, also known as DHP (Deoxidized High Phosphorus) copper, is commonly used in heat exchangers and condensers, especially operating in seawater environments. C12200 seamless tubes have good thermal conductivity (~390 W/m·K) for efficient heat transfer. And having ecent strength and formability for tube fabrication. Notes: soft temper (annealed) for bending, hard temper for high-pressure applications.
Chemical Composition (%) DHP Phosphorized Copper Seamless Tube
| Grade | Cu | Phosphorus | Others |
| C12200 | 99.90 | 0.015-0.040 (acts as a deoxidizer) | ... |
Mechanical Properties DHP Phosphorized Copper Seamless Tube
| Grade | Standard---Former | Tensile Strength,min | Yield Strength (0.2%Offset,min) |
| C12200 | H55 --- Light-drawn | 36ksi / 250 MPa | 30ksi / 205 MPa |
| H80 --- Hard-drawn | 45ksi / 310 MPa | 40ksi / 275 MPa |
Role Of C12200 Tubes in Seawater Condensers
Seawater condensers (used in ships, desalination plants, and coastal power stations)
C12200 DHP tubes have high thermal conductivity that ensures effective condensation of steam or refrigerant.
Moderate Corrosion Resistance: C12200 tubes perform better than pure copper in saline environments due to phosphorus reducing oxide formation.
But cupronickel (C70600/C71500) and titanium outperform C12200 in harsh seawater environments.
Low Fin Tubes are specialized heat exchangers designed to enhance heat transfer efficiency while maintaining a compact structure. C12200 copper low-fin tube plays a specialized role in seawater condensers, offering enhanced heat transfer efficiency compared to smooth tubes while maintaining some of the inherent benefits of phosphorus-deoxidized copper (DHP). Fin height, density, and pitch are optimized for condensation performance.
In seawater condensers, C12200 low fin tubes enhanced heat transfer, particularly helpful when seawater is on the shell side (outside the tubes) and refrigerant/steam is inside.
Application ( Not limited to the following )
HVAC & Refrigeration Systems: Evaporators & Condensers / Heat Pumps
Power Plant Condensers: Steam Surface Condensers / Auxiliary Cooling Systems
Chemical & Process Industries: Liquid-to-Gas Heat Exchangers / Reboilers & Distillation
Marine & Offshore Applications: Seawater Coolers & Condensers / Desalination Pre-Heat Exchangers
Industrial & Manufacturing Cooling: Hydraulic Oil Coolers / Compressed Air Aftercoolers
Specifications For Various Types Of Finned Tubes
Our finned tubes include the following types,and we can make sure that fin tubes we produced with highest quality and manufacturing standards.
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tube | 16-63 | 2.1-5 | <17 | ~0.4 |
| Extruded | Single metal / Combined metal | 8-51 | 1.6-10 | <17 | 0.2-0.4 |
| Low fin tube / T-type fin tube | 10-38 | 0.6-2 | <1.6 | ~0.3 | |
| Bamboo tube / corrugated tube | 16-51 | 8-30 | <2.5 | ~0.3 | |
| Wound | L / KL / LL type fin tube | 16-63 | 2.1-5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type fin tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3-25 | 5-30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8-30 | <200 | 1.5-3.5 | |
| Serrated spiral fin tube | 25-219 | 2-7 | <38.1 | 0.9-2.0 | |
| Studed fin tube | 25-219 | 8-30 | 5-35 | φ5-20 | |
