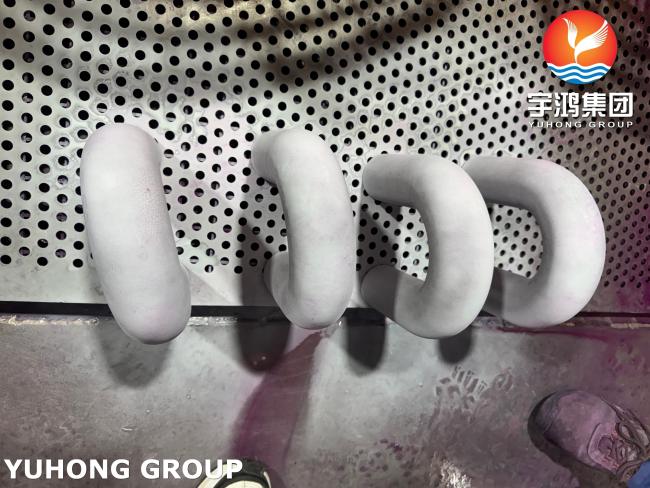

ASTM A815 WPS32205-S refers to a 180-degree return bend made from duplex stainless steel UNS S32205 (also known as 2205) conforming to the ASTM A815 standard. Here’s a detailed breakdown:
1. Material ASTM A815 WP S32205-S
(1). Chemical Composition (ASTM A815 WP S32205-S)
The composition ensures corrosion resistance, strength, and weldability.
| Element | Weight % (Min-Max) |
| Carbon (C) | ≤ 0.030 |
| Manganese (Mn) | ≤ 2.00 |
| Phosphorus (P) | ≤ 0.030 |
| Sulfur (S) | ≤ 0.020 |
| Silicon (Si) | ≤ 1.00 |
| Chromium (Cr) | 22.0 – 23.0 |
| Nickel (Ni) | 4.5 – 6.5 |
| Molybdenum (Mo) | 3.0 – 3.5 |
| Nitrogen (N) | 0.14 – 0.20 |
| Iron (Fe) | Balance |
Note: Some traces of Copper (Cu) and Tungsten (W) may be present but are not mandatory.
(2). Mechanical Properties (ASTM A815 WP S32205-S)
Duplex 2205 offers high strength and toughness due to its austenitic-ferritic microstructure.
| Property | Value |
| Tensile Strength (min) | 620 MPa (90 ksi) |
| Yield Strength (min, 0.2% offset) | 450 MPa (65 ksi) |
| Elongation (min, in 50mm) | 25% |
| Hardness (Rockwell C, max) | 32 HRC |
| Impact Toughness (Charpy V-notch, min at -46°C/-50°F) | 54 J (40 ft-lb) |
Additional Notes:
Heat Treatment: Solution annealed at 1025–1125°C (1875–2050°F) followed by rapid cooling.
Pitting Resistance Equivalent (PREN): ~35–40 (PREN = %Cr + 3.3(%Mo + 0.5%W) + 16%N).
3. 180-Degree Return Bend
- A pipe fitting that changes direction by 180 degrees, forming a U-shape.
- Used to reverse flow direction in piping systems while maintaining a compact layout.
- Typically made via hot forming or cold bending processes.
4. Key Features
- Pressure Rating: Suitable for high-pressure applications.
- End Connections: Butt-welded ends for seamless integration into piping systems.
- Corrosion Resistance: Ideal for aggressive environments (e.g., seawater, acidic/alkaline media).
- Dimensional Compliance: Follows ASME B16.9 or other relevant standards.
5. Comparison with Other Materials
| Material | Tensile Strength | PREN | Best For |
| Duplex 2205 (S32205) | 620 MPa | ~35 | High-pressure, chloride-rich environments |
| Super Duplex 2507 (S32750) | 800 MPa | ~42 | Extreme chloride/acid exposure |
| 316L Stainless Steel | 485 MPa | ~25 | Mild corrosive conditions |
6. Key Standards & Specifications
- ASTM A815 – Covers duplex stainless steel fittings.
- ASME B16.9 – Dimensions for factory-made butt-welding bends.
- NACE MR0175/ISO 15156 – Approved for sour service (H₂S environments).
The ASTM A815 WP S32205-S Stainless Steel 180-Degree Return Bend (made from Duplex 2205, UNS S32205) is used in demanding environments where high strength, corrosion resistance, and pressure integrity are critical. Below are its key applications:
1. Oil & Gas Industry
- Offshore & Subsea Pipelines – Resists chloride stress corrosion cracking (SCC) in seawater.
- Downhole & Wellhead Equipment – Handles H₂S (sour gas) and CO₂ in aggressive well fluids.
- Flow Lines & Risers – High-pressure U-bends for directional changes in piping.
2. Chemical & Petrochemical Processing
- Acid & Alkaline Transport – Resists sulfuric, phosphoric, and organic acids.
- High-Temperature Lines – Used in heat exchangers, reactors, and condensers.
- Chloride-Rich Environments – Ideal for bleach, chlorine, and brine handling.
3. Desalination & Water Treatment
- Seawater Reverse Osmosis (SWRO) Plants – Resists pitting/crevice corrosion.
- Brine Recirculation Lines – 180° bends in high-salinity systems.
4. Power Generation
- Cooling Water Systems – Used in nuclear, thermal, and offshore power plants.
- Flue Gas Desulfurization (FGD) – Resists wet sulfuric acid environments.
5. Marine & Shipbuilding
- Ballast & Bilge Systems – Prevents corrosion in saltwater piping.
- Exhaust Scrubbers – Handles acidic washwater in emission control systems.
6. Pulp & Paper Industry
- Bleach Plants & Digesters – Withstands corrosive chlorine dioxide (ClO₂) liquors.
Why Choose Duplex 2205 (S32205) for 180° Return Bends?
✅ Superior Strength – 2x stronger than standard 304/316 stainless steel.
✅ Corrosion Resistance – Excellent against pitting, SCC, and erosion.
✅ Cost-Effective – Longer lifespan than austenitic steels in harsh conditions.
✅ Compact Design – 180° bends minimize space in piping layouts.
