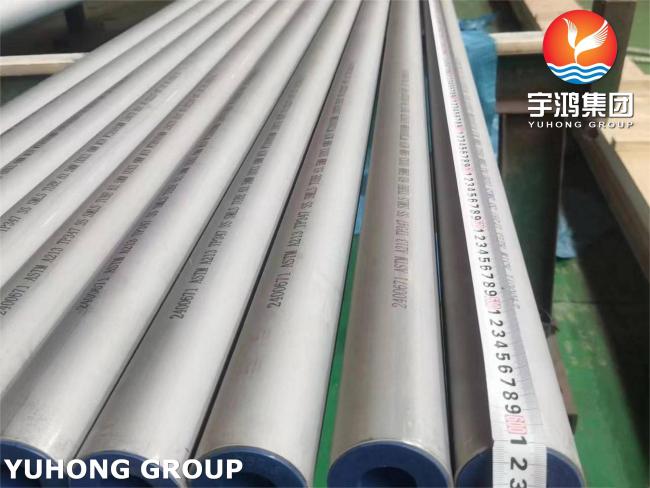

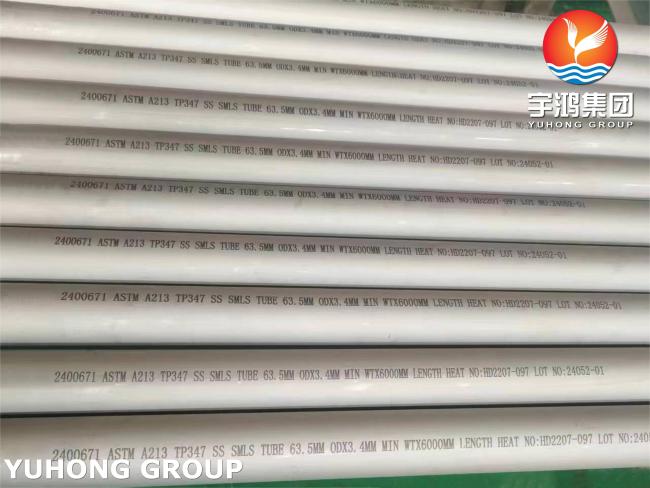

Stainless Steel Seamless ASTM A213 TP347 Heat Exchanger Bundle Tubes For Power Plants
Stainless Steel Seamless ASTM A213 TP347 Heat Exchanger Bundle Tubes For Power Plants
ASME SA213/ASTM A213 This specification covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes, designated Grades T5, TP304,TP316L, TP347, TP310S etc.
| Chemical Composition (%) max | ||||||||||
| Grade | UNS | C | Mn | P | S | Si | Cr | Ni | Nb | N |
| TP347 | S34700 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-20.0 | 9.0-13.0 | 10xC-1.10 | ... |
C → Reduces intergranular corrosion risk
Nb → Stabilizes against carbide precipitation (prevents sensitization)
Cr → Oxidation & corrosion resistance
Ni → Austenitic structure stability
| Mechanical Properties | |||
| Tensile Strength, min | Yield Strength, min. | Elongation in 2 in. or 50mm, min. | Brinell/Vickers;Rockwell |
| 75ksi [ 515MPa ] | 30ksi [205MPa ] | 35% | 192HBW/200HV ;90HRB |
Austenitic Structure: Provides excellent toughness and high-temperature strength.
Key Features Suitable For Heat Exchangers
The A213 TP347 tube plays a crucial role in heat exchangers,condensers, and boilers due to its material properties and design.
TP347 has high-temperature performance,excellent creep resistance (up to 800°C / 1472°F),can resistant to oxidation & scaling in steam environments
Common Applications in Power Plants
| Heat Exchangers in HRSG & Condensers in high-sulfur environments |
| Boiler & Superheater & Reheater Tubes (high-temperature/pressure environments) in coal-fired & nuclear plants |
| Chemical Processing Equipment (resistant to acids, chlorides, and sulfides) |
| Food, Pharmaceutical, and Marine Industries |
