1. What is ASME SA192 Seamless Carbon Steel HFW Serrated Fin Tube?

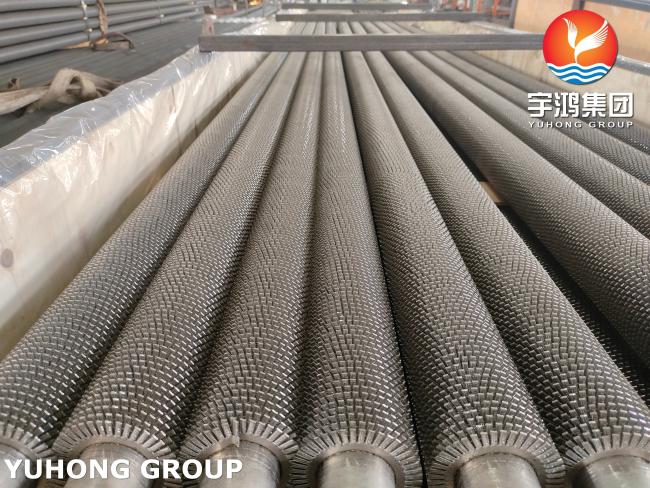

The ASME SA192 Seamless Carbon Steel HFW Serrated Fin Tube is a high-efficiency heat transfer component designed for extreme pressure environments. It features a seamless carbon steel base tube conforming to ASME SA192 standards, with serrated aluminum/steel fins precision-welded via High-Frequency Welding (HFW) technology. The unique serrated fin design maximizes surface area by 8-10x, disrupting boundary layers to enhance turbulence and heat exchange efficiency by 30-50% compared to smooth tubes. Ideal for boilers, superheaters, and heat recovery systems.
2. Chemical & Mechanical Properties
Chemical Composition (%)
|
ASME A192 Chemical Composition(%) |
|||||
|
Element |
C |
Si |
Mn |
P |
S |
|
Range |
0.06-0.18 |
≤0.25 |
0.27-0.63 |
≤ 0.035 |
≤0.025 |
Mechanical Properties
|
ASME SA192 Mechanical Properties |
||||
|
Tensile Strength |
Yield Strength |
Elongation |
Hardness |
Max Service Temp. |
|
≥325 MPa |
≥180MPa |
≥35% |
≤ 137HB |
565°C (1050°F) |
3. Specific Applications of ASME SA192 Seamless Carbon Steel HFW Serrated Fin Tube
The ASME SA192 Seamless Carbon Steel HFW Serrated Fin Tube is most commonly used in high-efficiency heat transfer applications. Its primary areas of application include:
● Heat Exchangers: Due to the large surface area provided by the serrated fins, this tube is ideal for transferring heat between two fluids, making it a staple in industrial heat exchangers.
● Economizers: The tubes are used in economizers to improve the overall energy efficiency of a system by capturing residual heat from exhaust gases.
● Condensers: Widely used in condensers for cooling applications, particularly in power plants and refrigeration systems.
● Steam Boilers: These tubes are commonly used in high-pressure steam boilers to ensure effective heat dissipation and maintain system efficiency.
● Air Preheaters: The tubes are also employed in air preheaters, helping to preheat air before it enters combustion systems.
4. Why Choose ASME SA192 HFW Serrated Fin Tubes?
A:Company Competitiveness:
Yuhong Holding Group has more than 35 years experience for steel pipe and tube , fin tube , main application for Petrochemical , Oil refinary, Furnace, heating, boiler, heat exchanger, air cooler,.., till now YUHONG brand products already exported more than 85 countries, which like UK, ITALY, SPAIN , USA, MEXICO , COLOMBIA , BRAZIL, SAUDI ARANBIA , OMAN, QATAR, U.A.E, KOREA, ...., YUHONG brand already won good reputation in the market.
B:Product Competitiveness:
● High Durability: The seamless construction combined with high-frequency welding ensures long-lasting performance even under extreme pressure and temperature conditions.
● Excellent Heat Transfer Efficiency: The serrated fins dramatically increase the surface area, making it perfect for applications where maximum heat transfer is necessary.
● Versatility: Ideal for use in a wide range of applications, including boilers, heat exchangers, and condensers.
● Cost-effective: Despite its advanced design, the ASME SA192 tube is a cost-efficient solution for high-performance heat exchange needs
