ASME SA179 Carbon Steel Wound Fin Tube KL Type With Aluminium 1060 Strip
ASME SA179 Carbon Steel Wound Fin Tube KL Type With Aluminium 1060 Strip
Product Description

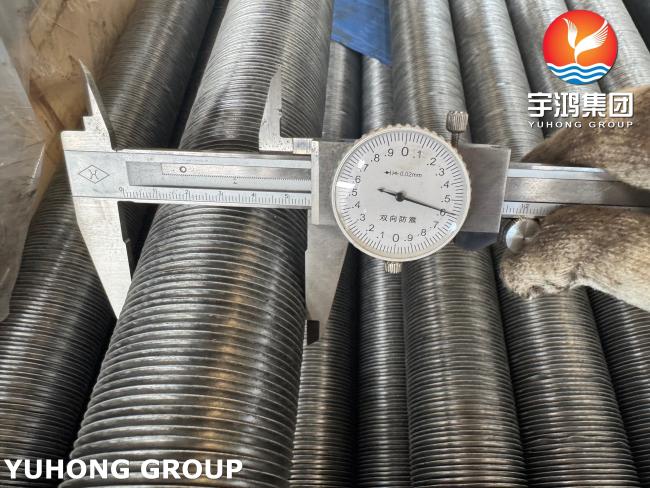

The ASME SA179 carbon steel wound fin tube (KL type) is manufactured by tightly winding an Aluminium 1060 strip around the base carbon steel tube. The foot of each fin strip is knurled (K) into the tube surface to improve bonding strength, and then the strip is tension wound (L) along the tube length to ensure close contact and excellent thermal conductivity. This construction provides a reliable combination of mechanical strength and heat transfer efficiency, ideal for air coolers and other heat exchanger systems.
Chemical Composition (ASME SA179 Base Tube)
| Element | C | Mn | P (max) | S (max) |
|---|---|---|---|---|
| Content (%) | ≤ 0.06 | 0.27–0.63 | 0.035 | 0.035 |
Mechanical Properties (ASME SA179 Base Tube)
| Property | Requirement |
|---|---|
| Tensile Strength | ≥ 325 MPa |
| Yield Strength | ≥ 180 MPa |
| Elongation | ≥ 35% |
| Hardness | ≤ 72 HRB |
Chemical Composition (Aluminium 1060 Fin Strip)
| Element | Al | Si | Fe | Cu | Mn | Zn | Others (each) | Others (total) |
|---|---|---|---|---|---|---|---|---|
| Content (%) | ≥ 99.6 | ≤ 0.25 | ≤ 0.35 | ≤ 0.05 | ≤ 0.03 | ≤ 0.05 | ≤ 0.03 | ≤ 0.10 |
Features of KL Type Wound Fin Tube
-
Knurled + wound structure for strong mechanical bonding between fin and tube
-
Excellent heat transfer due to full contact between fin strip and tube surface
-
Lightweight corrosion-resistant aluminium fins improve thermal efficiency and reduce overall weight
-
High mechanical strength to withstand vibration and thermal cycling in air cooler
Applications
-
Air cooler units in power plants and refineries
-
Heat exchangers in petrochemical and chemical industries
-
Gas compressors and condensers
-
Process cooling systems
Advantages
-
Cost-effective solution for large air-cooling systems
-
Efficient thermal conductivity with low thermal resistance
-
High surface area increases heat dissipation efficiency
-
Long service life under continuous operation
