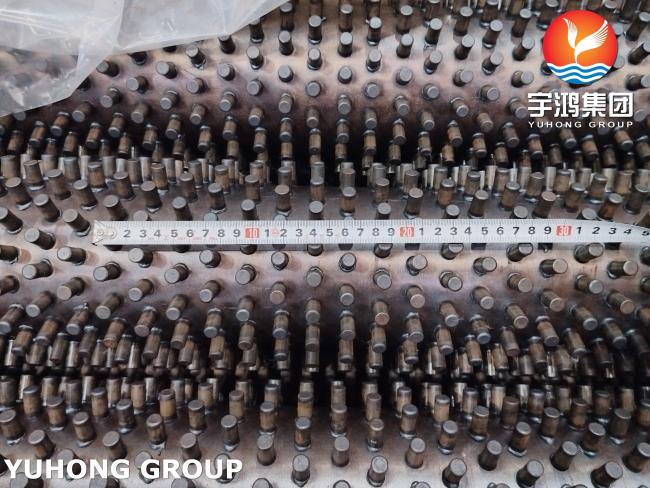

ASTM A335 P5 Alloy Steel Studded Tube for Furnance and Air Cooler

A335 P5 Studded Fin Tube Making Process

The general manufacturing process involves:

Base Tube Preparation: An A335 P5 tube is cut and cleaned.

Stud Welding: Individual studs are welded onto the tube's exterior in a predetermined pattern. This is typically an automated process using specialized stud welding equipment.

Heat Treatment (if required): The tube may undergo post-weld heat treatment to relieve stresses, depending on the application requirements.

Inspection & Testing: The finished tube is inspected and tested, which may include hydrostatic tests or non-destructive examination.

A335 P5 Studded Fin Tube  Advantages:

The combination of the A335 P5 material and the studded design offers specific advantages for demanding environments.

• Enhanced Heat Transfer: The studs significantly increase the external surface area, drastically improving heat transfer from the hot exterior to the fluid inside the tube.
• Robust Construction: The welded studs provide a very strong mechanical bond, making this design suitable for high-temperature, high-pressure, and abrasive environments.
• Refractory Anchoring: In furnace applications, the studs are excellent for anchoring and retaining refractory linings, which protect the tube and improve heat retention.

A335 P5 Studded Fin Tube Comparison with Other Grades

While a full comparison is beyond the search results' scope, A335 P5 occupies a middle ground in the Cr-Mo alloy family:

• It offers better corrosion resistance and high-temperature strength than low-chromium grades like P11 or P22.
• Compared to higher-grade steels like P91 (9% Chromium), P91 offers higher strength at elevated temperatures but may not be as cost-effective for all applications.

A335 P5 Studded Fin Tube Applications:
This tube is ideal for applications involving high temperatures and corrosive atmospheres, particularly in the petrochemical industry:

• Heater Tubes and Furnace Coils in refineries.
• Transfer Lines for high-temperature hydrocarbons.
• Components in Catalytic Cracking and Delayed Coking Units

​
