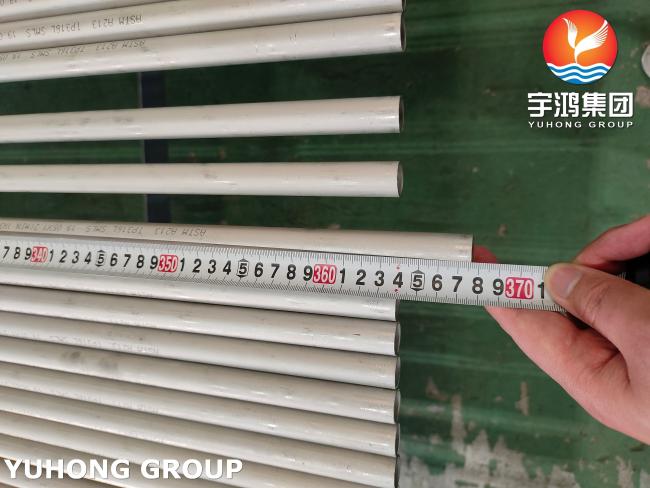

ASTM A213 TP316L / 1.4404 Stainless Steel Seamless Tube Heat Exchanger Tube
ASME SA213/ASTM A213 TP316L Stainless Steel Tube Seamless Heat Exchanger Tubing
Choose TP316L When:
- Operating below 60°C in chloride environments
- Chemical processing with organic acids or alkalis
- Sanitary applications requiring cleanability
- Moderate chloride concentrations (<1000 ppm)
- Temperature cycling applications
- Mixed chemical environments
- Where magnetic permeability must be low
- Welded construction required
ASTM A213 TP316L Stainless Steel Tube Coiled Tube Chemical Composition
| Grade | UNS Designation | C | M | P | S | Si | Ch | Ni | Mo | N | Nb | Ti | Other |
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0–18.0 | 10.0–14.0 | 2.00–3.00 | ... | ... | ... | ... |
ASTM A213 TP316L Stainless Steel Tube Coiled Tube Mechanical properties
|
Grade
|
Tensile Str
(MPa) min |
Yield Str
0.2% Proof (MPa) min |
Elong
(% in 50mm) min |
Hardness
|
|
|
Rockwell B (HR B) max
|
Brinell (HB) max
|
||||
|
316L |
485
|
170
|
40
|
95
|
217
|
ASTM A213 TP316L Stainless Steel Tube Coiled Tube Physical Properties
|
Grade
|
Density
(kg/m3) |
Elastic Modulus
(GPa) |
Mean Co-eff of Thermal Expansion (m/m/0C)
|
Thermal Conductivity
(W/m.K) |
Specific Heat 0-1000C
(J/kg.K) |
Elec Resistivity
(nΩ.m) |
|||
|
0-1000C
|
0-3150C
|
0-5380C
|
At 1000C
|
At 5000C
|
|||||
|
316/L
|
8000 |
193
|
15.9
|
16.2
|
17.5
|
16.3
|
21.5
|
500 |
740 |
Common Specifications & Comparisons
-
vs. ASTM A269 TP316L: A269 covers welded and seamless tubes for general service. A213 is specifically for pressure and high-temperature applications (boiler, superheater, heat exchanger). A213 typically has more stringent testing requirements (e.g., hydrostatic or non-destructive electric tests on every tube).
-
vs. ASTM A312 TP316L: A312 covers seamless and welded pipes for general corrosive service. The main difference is dimensional—A312 is for pipe (NPS sizes), while A213 is for tube (OD/tubing sizes).
-
vs. TP316 / TP316H: The key difference is carbon content. TP316 (0.08% C max) is more prone to sensitization. TP316H (0.04-0.10% C) is for high-temperature strength where intergranular corrosion is not the primary concern.
-
Equivalent Standards:
-
EN / DIN: 1.4404 / X2CrNiMo17-12-2
-
UNS: S31603
-
JIS: SUS 316L
-
Application
-
Heat Exchangers & Condensers
-
Boiler & Superheater Tubes
-
Oil & Gas Industry
-
Chemical & Petrochemical Processing
-
Pharmaceutical & Food Processing
-
Marine & Offshore Applications
