ASTM A312 TP304H Solid Finned Tube with SS304 Fins For Air Heaters and Economizers
ASTM A312 TP304H Solid Finned Tube with SS304 Fins For Air Heaters and Economizers

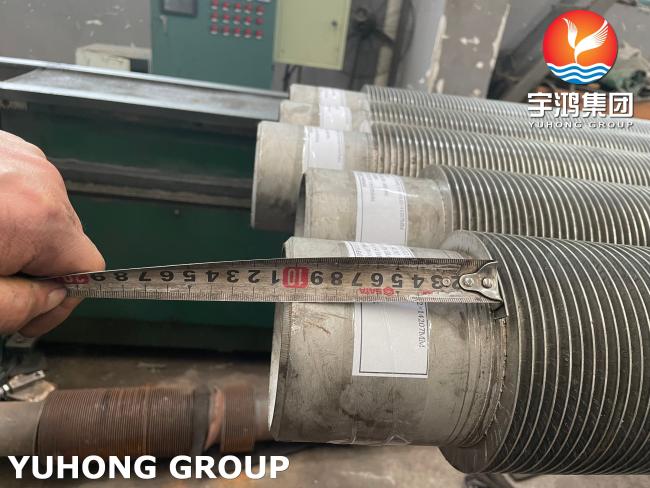

An ASTM A312 TP304H HFW Solid Finned Tube with SS304 Fins is a high-frequency welded stainless steel tube, made from a high-temperature grade of 304 stainless, with individual strips of standard 304 stainless steel welded to its outside to form fins. It is an engineered component optimized for durable, efficient heat transfer in demanding industrial applications.
1. Base Tube: ASTM A312 TP304H seamless pipe
(1). Chemical Composition (Weight %)
| Element | Minimum (%) | Maximum (%) | Notes |
| Carbon (C) | 0.04 | 0.10 | Higher C for creep strength |
| Manganese (Mn) | – | 2.00 | |
| Phosphorus (P) | – | 0.045 | |
| Sulfur (S) | – | 0.030 | |
| Silicon (Si) | – | 0.75 | |
| Chromium (Cr) | 18.00 | 20.00 | |
| Nickel (Ni) | 8.00 | 11.00 | |
| Nitrogen (N) | – | 0.10 |
Key Points:
Carbon range 0.04–0.10% is the main difference from standard TP304 (C max 0.08%).
The "H" grade requires a minimum Carbon of 0.04% and often restricts the C range more tightly to ensure high-temperature performance.
Chromium and Nickel provide oxidation resistance and austenitic structure stability.
(2). Mechanical Properties (Room Temperature)
| Property | Requirement | Test Standard |
| Tensile Strength (min) | 515 MPa (75 ksi) | ASTM A370 |
| Yield Strength (0.2% offset, min) | 205 MPa (30 ksi) | ASTM A370 |
| Elongation (min) | 35% (in 2 in./50 mm) | ASTM A370 |
Note: Properties are for the tube material in the final heat-treated condition.
2. Fins: SS304 HFW Solid fins
- HFW tubes are more cost-effective than seamless tubes for many applications and are perfectly suitable for the pressures and temperatures TP304H is rated for. The weld seam is often heat-treated to normalize its properties.
- This describes the fin type. "Solid fins" mean the fins are discrete, individual strips (usually rectangular or trapezoidal in cross-section) that are attached to the tube.
- This is in contrast to "integral fins" (which are extruded or rolled from the tube wall itself) or "serrated fins" (where the fin strip has cuts to enhance turbulence).
- SS304 is the same base alloy as the tube (TP304H), but without the "H" certification. This is standard practice. The fins, being thinner, typically do not require the same high-temperature strength certification as the pressure-bearing tube. Using the same family of alloy ensures compatible thermal expansion and good weldability.
3. Key Characteristics & Typical Applications of ASTM A312 TP304H HFW Solid Finned Tube with SS304 Fins
- Enhanced Heat Transfer: The fins multiply the external surface area, making heat exchange with air or gas much more efficient.
- High-Temperature Capability: The "H" grade tube is designed for sustained operation at temperatures where creep is a design factor.
- Corrosion Resistance: The 304 stainless steel provides good resistance to oxidation and many corrosive environments.
- Pressure Integrity: The tube meets ASTM A312 standards for wall thickness and strength, allowing it to contain internal fluid pressure.
Primary Application Areas
1. Power Generation
| Application | Function | Why TP304H HFW Finned Tube is Used |
| Heat Recovery Steam Generators (HRSGs) | Recovers waste heat from gas turbine exhaust to produce steam | - High-temperature resistance (creep strength) - Corrosion resistance from exhaust gases - Fins maximize heat recovery efficiency |
| Superheaters & Reheaters | Increases steam temperature above saturation point for turbine efficiency | - Designed for 540°C+ service - High-pressure capability - Oxidation resistance in steam |
| Economizers | Preheats boiler feedwater using flue gas | - Resists acid dew point corrosion - Efficient gas-side heat transfer |
| Air Preheaters | Preheats combustion air using flue gas | - Large temperature differential handling - Finned surface optimizes gas-side heat transfer |
2. Petrochemical & Refining
| Application | Function | Why TP304H HFW Finned Tube is Used |
| Process Gas Heaters | Heats process streams (hydrocarbons) | - High-temperature strength - Sulfur resistance in some streams |
| Waste Heat Boilers | Recovers heat from process streams | - Handles thermal cycling - Corrosion resistance to process gases |
| Reformer & Cracker Units | High-temperature process heat exchange | - Creep resistance at 600-800°C range - Stable metallurgy |
3. Industrial Boilers & Furnaces
| Application | Function | Why TP304H HFW Finned Tube is Used |
| Package Boilers | Steam generation for process/plant | - Compact finned design saves space - Cost-effective HFW construction |
| Thermal Fluid Heaters | Heat transfer fluid heating | - Efficient heat transfer - High-temperature capability |
| Combustion Air Preheat | Energy recovery from flue gases | - Temperature resistance - Fins enhance gas-side coefficient |
4. Waste-to-Energy & Incineration
| Application | Function | Why TP304H HFW Finned Tube is Used |
| Boiler Sections | Steam generation from waste heat | - Resists corrosive flue gases (HCl, SOx) - Handles particulate erosion |
| Emission Control Systems | Gas cooling before treatment | - Temperature reduction capability - Corrosion resistance |
